SPG560n Single Point Gauge
The T-Ray® 5000 SPG single point thickness measurement gauge allows direct measurement of multiple layer objects with the press of a button.
The T-Ray® 5000 SPG single point thickness measurement gauge allows direct measurement of multiple layer objects with the press of a button. The modular nature of the measurement tool allows either straight-on or right-angle measurement tips. The measurement is fundamentally non-contact, but for hand-held use, a measurement tip is used to aid the user in positioning the object at the focus of the THz beam. An easy to use touchscreen display allows selection of measurement configuration and mode of operation.

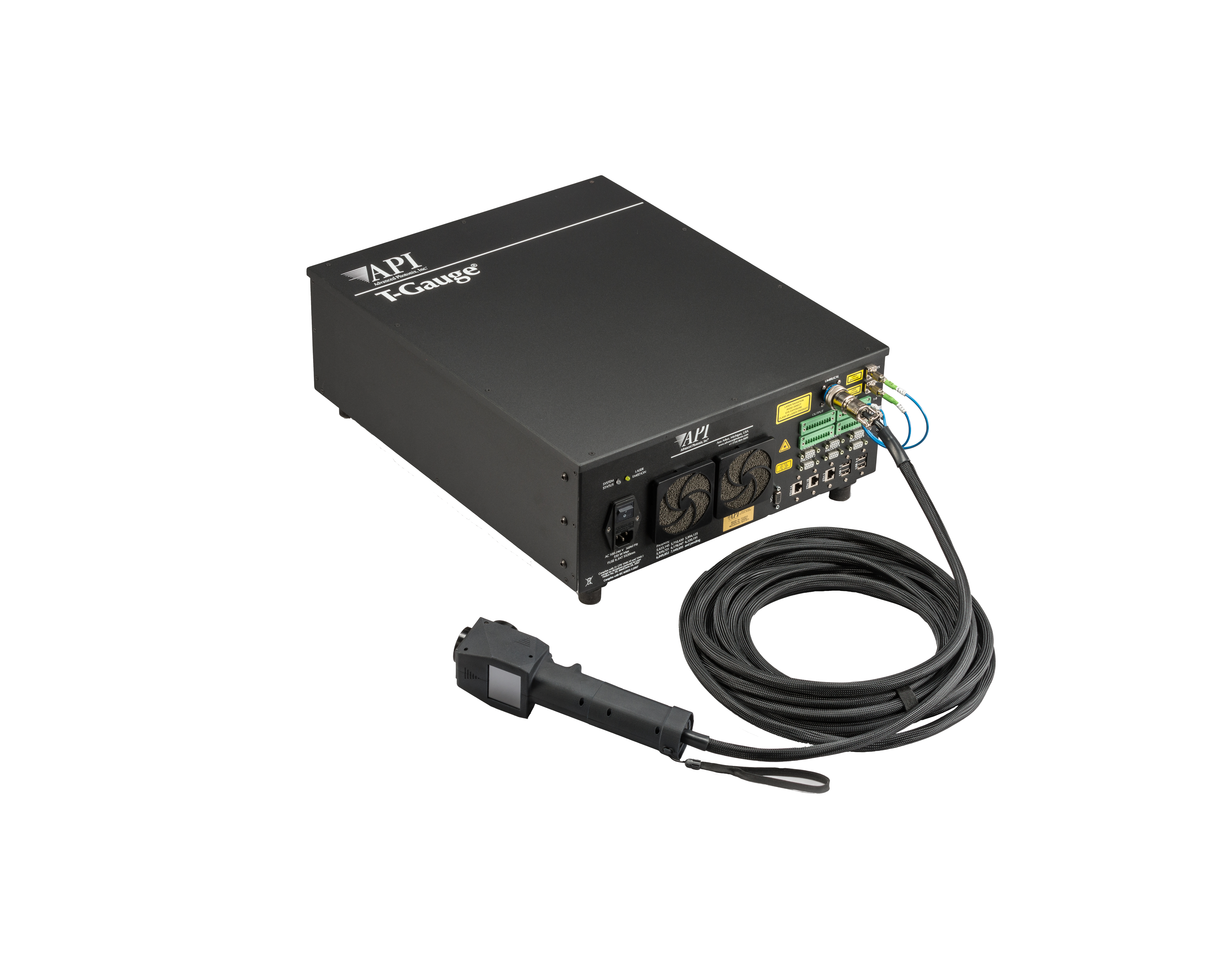

The SPG560n is compatible with any of the intelligent T-Ray® 5000 Terahertz Control Units (TCU). The TCU56nm uses VGA and USB ports to allow an external monitor and keyboard to be attached if desired. The Controller comprises the short pulse laser, time delay rail, data collection electronics and high speed processor required for a high performance terahertz system. With a waveform acquisition time of 10ms or 1ms, rapid layer thickness measurements can be made reliably.
By using pulse Time-of-Flight (ToF) to make its measurements, the SPG560n has greater insensitivity to environmental and material variations that can lead to calibration inaccuracies, as well as operator inconsistencies.
- Compact control unit
- Easy touchscreen control
- Up to 3 measurements displayed on the gauge
- Integrated data processor
- Ergonomic trigger to start measurement
- Spot check of thickness or layer structure of coatings or multilayer extrusions
- Gauge can determine thickness, basis weight, delamination
- Examine bond lines between molded structures and their substrate
Type 1 Gauge >10 Cg Gauge Direction 0, 90 deg Standoff 25, 75 mm (contact cone for stability) Umbilical Lengths 5, 10, 15, 30 m Thickness Accuracy 0.03 mil (0.8 microns) Size (W x H x D) 2.5 x 3.0 x. 10.5 inches Weight 4.5 lb (with 5 m umbilical shown)
