Batteries and E-Mobility

Thermal Mapping of Batteries

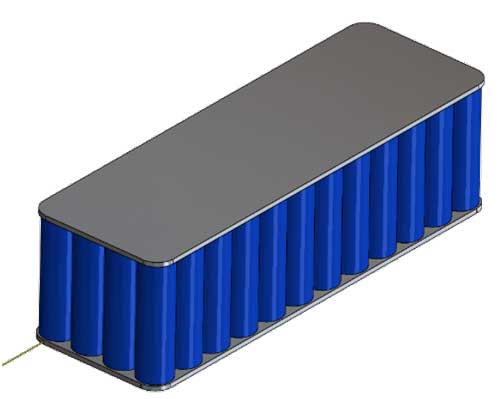

Battery temperature mappingThe performance and lifecycle costs of electric vehicles and hybrid vehicles depend heavily on battery functionality. The thermal design and operation of battery modules and battery packs is critical to the deployment of economical, safe and reliable electric powertrains.

A Better Alternative to RTDs and Thermocouples

Fiber optic sensors have several inherent benefits that make them ideal for thermal analysis of batteries and other energy storage technologies, including:

  • Dielectric — immunity to EMI and high voltages
  • Corrosion-resistant
  • Non-conductive optical fiber
  • Multipoint and distributed thermal measurements
  • Fast thermal response.

Fiber optic sensors can be embedded into battery packs and make direct contact with battery cells and contacts, without any concern for causing short circuits or being affected by high voltages and currents.

Luna’s fiber optic sensing solutions are inherently multipoint or distributed, allowing the monitoring of temperature at many more locations using only a single, very small optical fiber. Luna’s high-definition fiber optic sensing (HD-FOS) technology provides essentially continuous temperature measurements along the fiber, supplying much more thermal data than possible with conventional systems using RTDs and thermocouples.

Additionally, embedded fiber optic sensors have a very low thermal mass and exhibit a very fast response to rapid temperature increases for early detection of overheating and thermal runaway events.

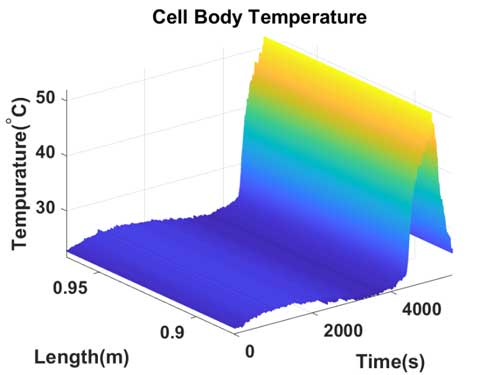

Cell Body Temperature

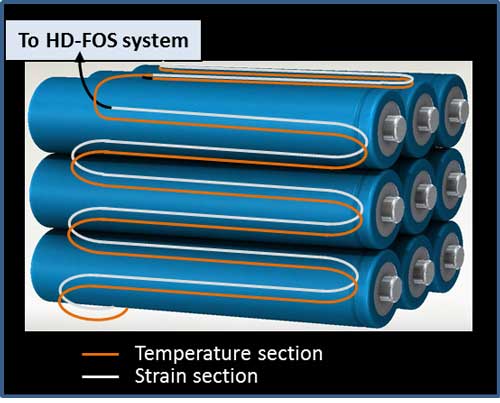

Temperature and Strain

Featured Products

ODiSI System

High-Definition Distributed Fiber Optic Sensing

HD Sensors

High-Definition Sensors

HYPERION si255 interrogator

High-Speed Multipoint Fiber Optic Sensing

ODiSI System

High-Definition Distributed Fiber Optic Sensing

Unlike conventional strain gauges that only measure strain at a discrete point, Luna's high definition fiber optic strain gauges provide continuous, high-resolution (less than 1 mm) measurements of strain along the entire length of the sensor (up to 50m).
HD Sensors

High-Definition Sensors

Unlike conventional strain gauges that only measure strain at a discrete point, Luna's high definition fiber optic strain gauges provide continuous, high-resolution (less than 1 mm) measurements of strain along the entire length of the sensor (up to 50m).
