Testing Fiber Optic Networks and Assemblies

Manufacturing Test of Fiber Optic Assemblies

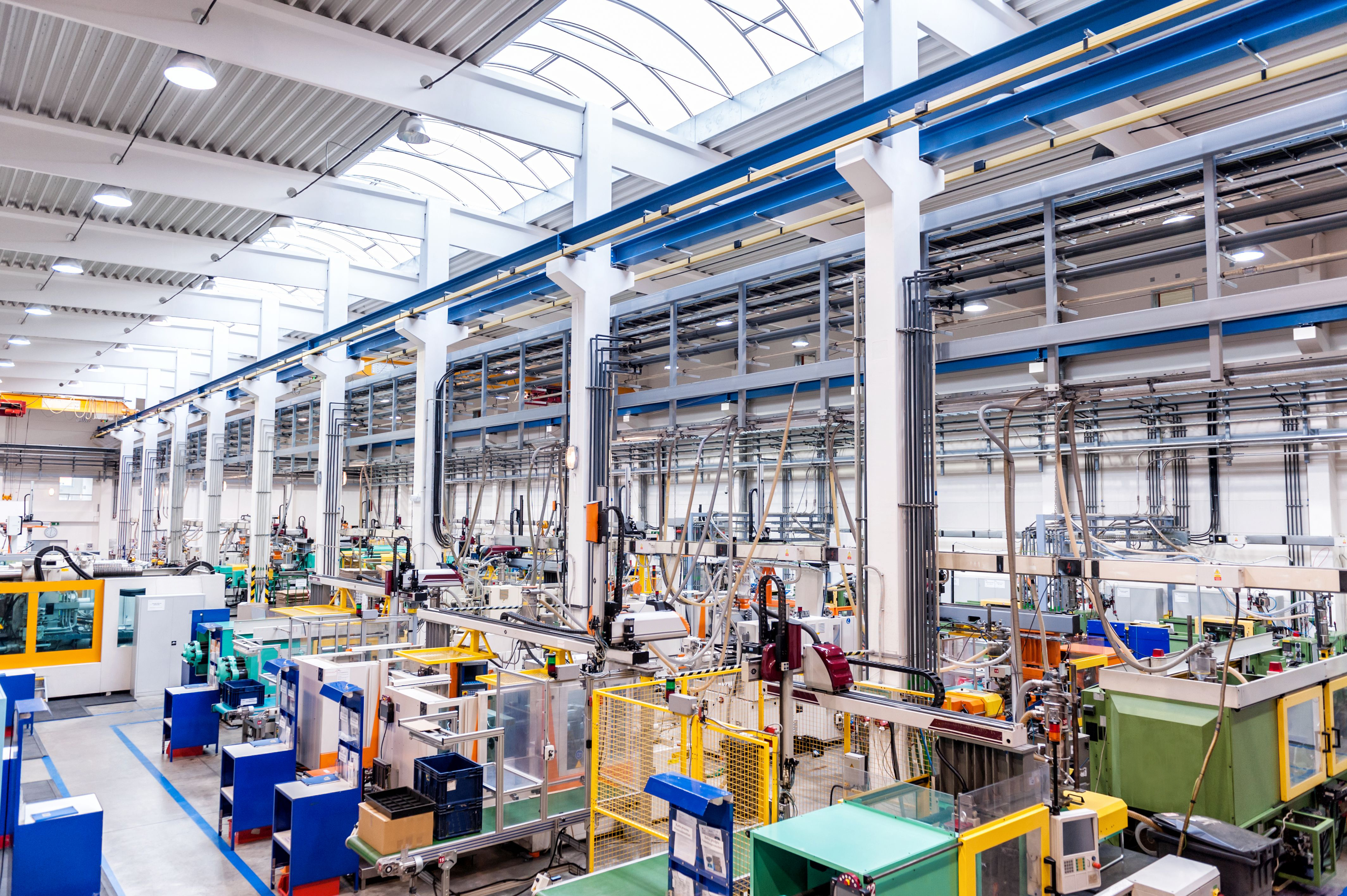

Luna’s advanced test and measurement capabilities are helping manufacturers efficiently deliver consistent product quality. Manufacturing floorOFDR-based systems, such as the OBR 4600 and Luna 6415 are ideal for fast and reliable production testing of fiber optic components and assemblies. Compared to traditional approaches to test return loss and insertion loss, Luna systems are faster, more accurate and provide additional test coverage and detail.

OFDR/OBR Capability Manufacturing Test Benefit
Reflection measurements Single-ended access for measurement of IL and RL
Spatially-resolved loss measurement

Localized loss characterization

Identify location of loss and faults

Precise length measurement

Spectral analysis Test wavelength-dependent functions
High dynamic range and sensitivity Higher accuracy and precision
High-speed measurements Increased test throughput

In addition to providing the standard loss measurements required for most fiber optic testing, Luna’s OBR systems provide spatially-resolved loss analysis for additional insight and diagnostics, highly precise length and latency measurements and spectral analysis for wavelength-dependent components.

Compared to traditional approaches to test return loss and insertion loss, Luna systems are faster, more accurate and provide additional test coverage and detail.

Featured Products

OBR 6225

Fiber Optic Network Test

Luna 6415

Optical Component Test

OBR 6225

Fiber Optic Network Test

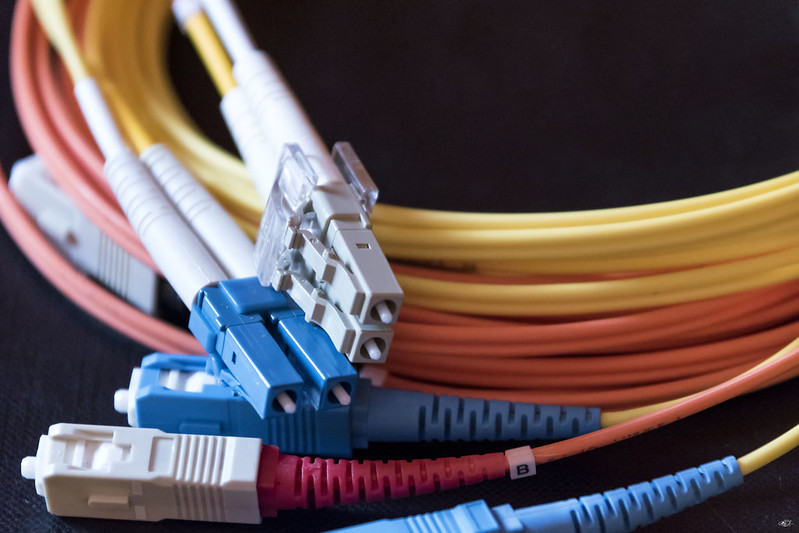

Test and characterize fiber optic cables, assemblies and network with unmatched speed, precision and spatial resolution. Luna’s OBR reflectometers can analyze loss with a spatial resolution and sensitivity unmatched in the industry.
