Process Control and Non-Destructive Testing

Process Temperature Monitoring

Temperature is a critical parameter in most industrial processes. The ability to manage and optimize production often requires the accurate measurement of temperature at multiple points and locations. Limitations of traditional sensors, such as thermocouples and RTDs, often lead to indirect measurements, sensing by proxy and working with a limited amount of sensor data.

Luna’s fiber optic sensing (FOS) technology allows direct and real-time temperature mapping using small, lightweight optical fiber, eliminating bulky sensor wiring.

Fiber optic sensors are small enough to be mounted or embedded into materials and on complex geometries, allowing fast and accurate temperature measurement where thermocouples can’t be mounted and IR cameras can’t access.

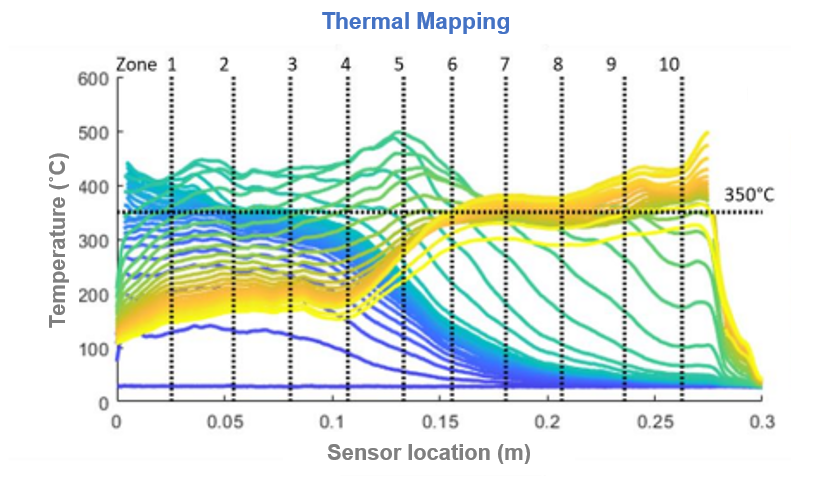

Thermal mapping data
Temperature mapping with high-definition temperature sensors yields more complete thermal data

A single fiber generates a continuous temperature mapping, with individual sensing locations spaced from 1 cm to less than 1 mm along the fiber or temperature probe, virtually guaranteeing that hot spots are not missed.  Data is available in real-time for monitoring and feedback control.

Example Process Applications FOS Temperature Solution
  • Autoclaves
  • Heat exchangers
  • Incubators
  • Ovens and furnaces
  • Refrigerators
  • Welders
  • Environmental chambers
  • Steel casting
  • Transformers and power systems
  • Real-time thermal mapping
  • Continuous mapping (100 sensor points per meter or more) reduces risk of missing hot spots
  • Eliminate bulky sensor wiring
  • Fast thermal response (low mass)
  • Immune to EMI and corrosion resistant

Featured Products

ODiSI 7100 System

High-Definition Distributed Fiber Optic Sensing

HD Sensors

High-Definition Sensors

HYPERION si255 interrogator

High-Speed Multipoint Fiber Optic Sensing

os3200 strain sensor

FBG and FP Sensors

ODiSI 7100 System

High-Definition Distributed Fiber Optic Sensing

Unlike conventional strain gauges that only measure strain at a discrete point, Luna's high definition fiber optic strain gauges provide continuous, high-resolution (less than 1 mm) measurements of strain along the entire length of the sensor (up to 50m).
HD Sensors

High-Definition Sensors

Unlike conventional strain gauges that only measure strain at a discrete point, Luna's high definition fiber optic strain gauges provide continuous, high-resolution (less than 1 mm) measurements of strain along the entire length of the sensor (up to 100 m).

Learn More About Our Capabilities
