Process Control and Non-Destructive Testing

Density Measurement

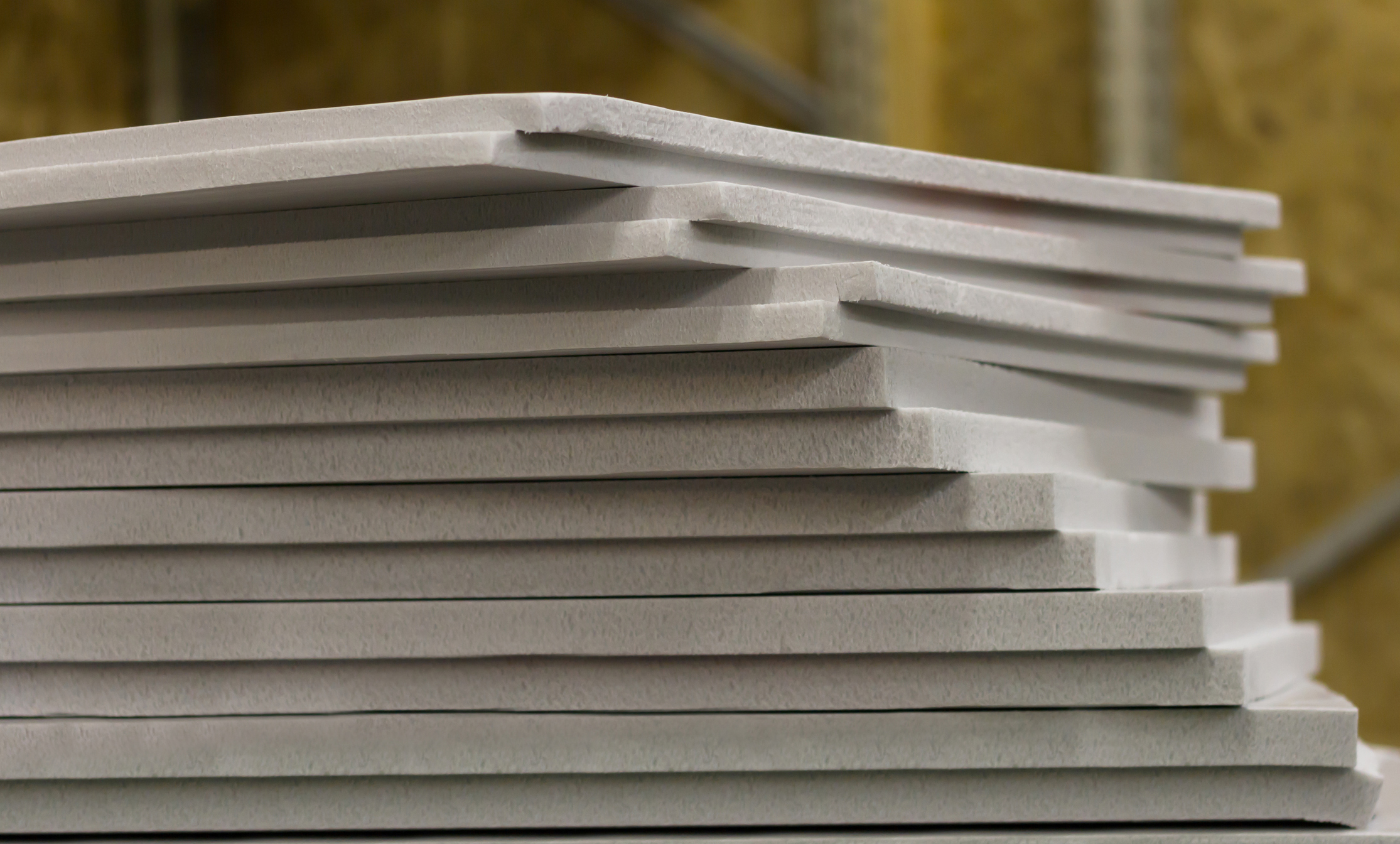

The ability to accurately measure the optical density of a material in-process can be an important factor in minimizing rejected product and maximizing product throughput. Density measurementHowever, it can be difficult to measure density for compressible materials like foam. Traditional contact gauges cannot be used without compressing the surface of the sample creating inaccurate measurements. Delaying measurement until after the foam is set can create substantial process feedback delays.


Luna's T-Gauge Measurement System

The T-Gauge Measurement System utilizes terahertz technology to create a safe, non-contact solution to measure not only the thickness of compressible materials without calibration, but also the ability to measure the density with a single sensor. The terahertz system can even measure the density of the foam layer where there are layers of other materialsDensity measurement using Terahertz technology (e.g. paper board or plastic liner sheet) around the foam layer.  The sensor is also insensitive to the color of the foam due to the long wavelength of the pulse.



Featured Products

T-Ray 5600 Terahertz Control Unit

Terahertz Gauging and Imaging

T-Ray 5600 Terahertz Control Unit

Terahertz Gauging and Imaging

TeraMetrix is Luna’s product line for terahertz gauging and imaging, using pulsed terahertz waves to provide precise measurement of single and multi-layer thickness, density, basis weight and caliper thickness.
