T-Ray® 5000 Series

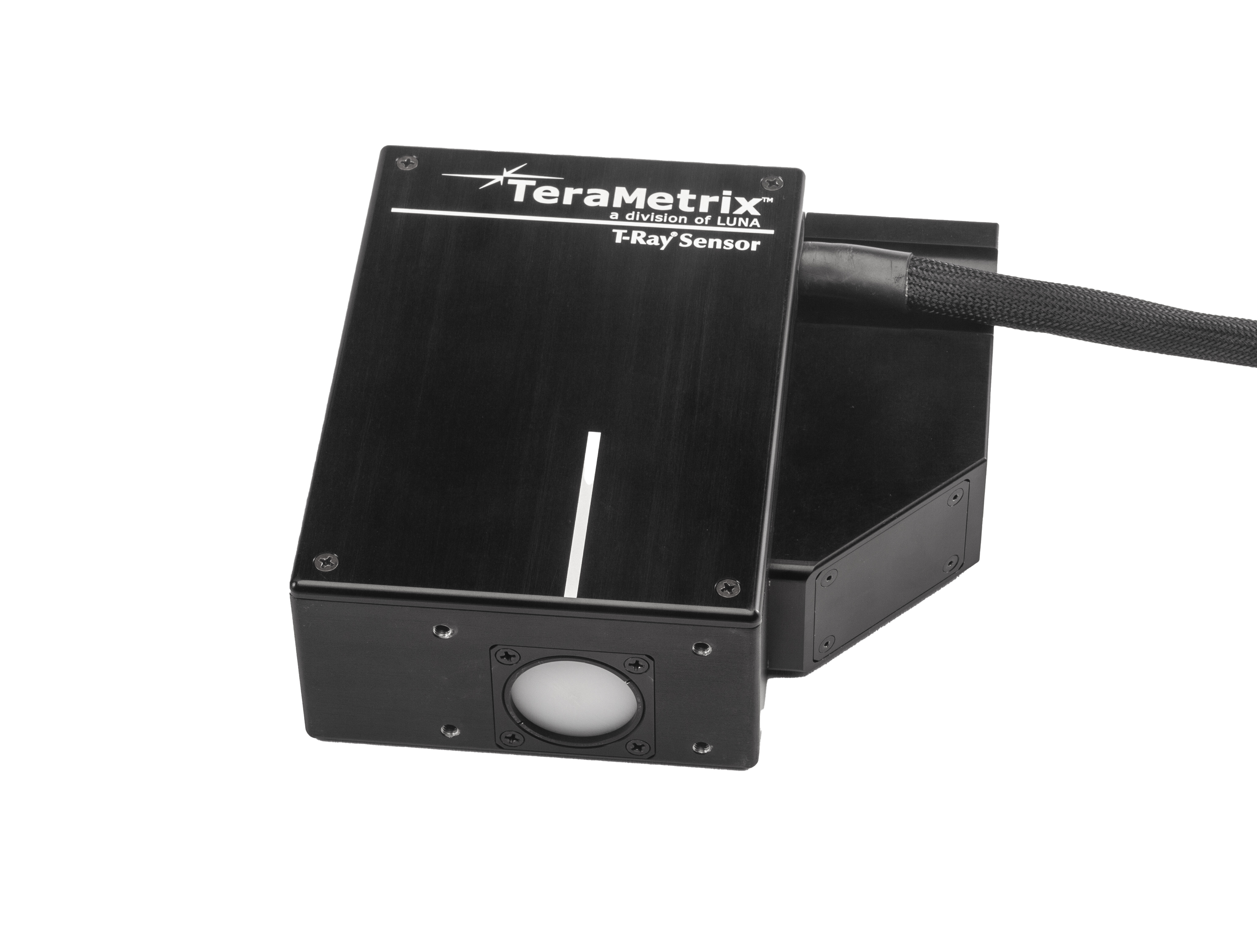

HXC56yn Online Sensor with VRS

The HXC56yn* Online Sensor Head adds functionality to the standard online sensor head (HXC55yn) with a virtual reference surface (VRS).

HXC56yn Data Sheet
Contact Us

Product Description

The HXC56yn Online Sensor Head adds functionality to the standard online sensor head (HXC55yn) with a virtual reference surface (VRS). Reflection measurement of thickness, multi-layer thickness, basis weight, and density are easily acquired. The VRS enables non-contact, calibrationless caliper thickness measurement as well as basis weight and density without reducing the open separation between the sensor and the product.

The transmitter and receiver are securely mounted inside the sealed metal housing. The umbilical for the transceiver, containing the electrical and optical connections, is constructed with high flex rated electrical cable to allow for continuous scanning.

When connected to a T-Ray® 5000 Control Unit, the HXC56yn will provide excellent waveform response, capable of providing detailed reflection measurement of layered surfaces.


  • Key Features
    • Full transceiver functionality
    • Collinear design
    • Low cost plastic lens
    • Hardened case for industrial environment
    • Use to measure layer thickness
    • Use to produce scanned images
    • Single high flex umbilical
    • Variety of focal lengths available
    • Capable of being cleaned
    • Supports VRS functionality

  • Applications
    • Industrial process control: commercial roofing; foam density; paint thickness; plastic extrusion; asphalt shingles
    • Nondestructive materials inspection: aircraft; packaged goods; radome inspection; spacecraft; pipeline repairs
    • Converting applications: paper coating; multilayer films; tire

  • Specifications
    Polarization Extinction Ratio  > 20:1      (Horizontal)
    Available Lens Focal Length 25, 75, 150, coll.    mm  (Other lens available on request)
    Beam Diameter 38 mm
    Mounting Hardware 1/4 - 20 Threaded mounting holes
    Operating Temperature Range 0 - 50 °C     (20 - 90% RH non-condensing)
    Size (W x H x D) 128 x 66 x 178 mm
    Weight 1.8 kg

    For full specifications and drawings, please download the data sheet.

  • Documentation

Solutions and Applications

The T-Ray® 5000 terahertz measurement system is robust enough to be deployed in an industrial environment and has all of the flexibility to solve your measurement application.
