Terahertz Control Unit
T-Ray® 5000 Series

Terahertz Control Unit

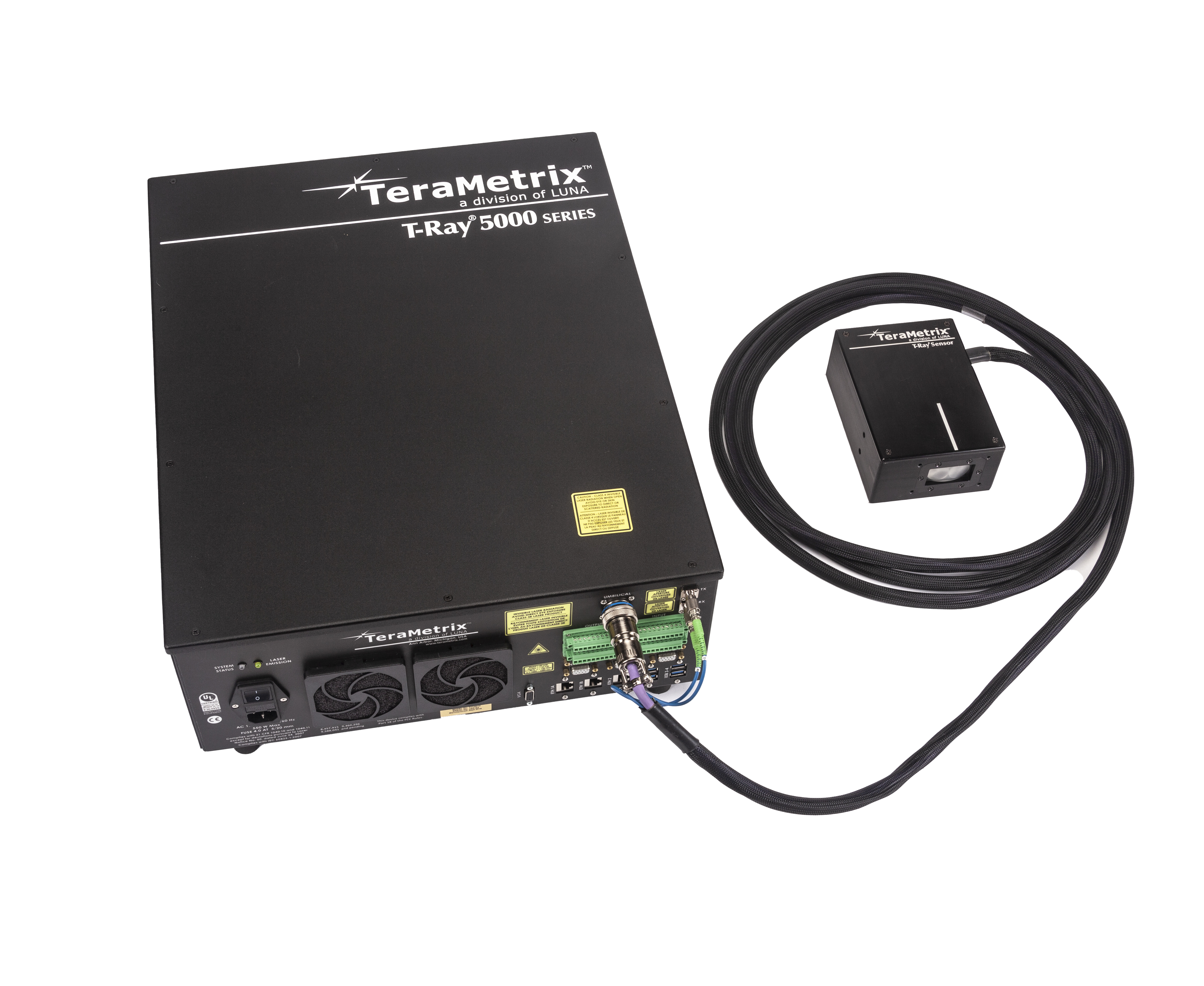

The T-Ray® 5000 Control Unit monitors and controls all aspects of THz generation and detection, precisely delivering controlled optical signals to the terahertz transmitters and receivers, or the T-Gauge® Sensor Heads, enabling them to generate and receive terahertz signals.

Product Description

The T-Ray® 5000 Control Unit is appropriate for use in industrial, nondestructive testing, and scientific applications. It monitors and controls all aspects of THz generation and detection. It delivers precisely controlled optical signals to the terahertz transmitters and receivers, or the T-Gauge® Sensor Heads, enabling them to generate and receive terahertz signals. Measured data are processed within the Control Unit at a rate of up to 1 kHz, making theT-Ray® 5000 one of the fastest terahertz systems available.

The data generated by the T-Gauge® Sensor Heads and processed by the T-Ray® 5000 Control Unit enable multiple measurements of a product simultaneously. One T-Gauge® Sensor can measure the basis weight, caliper thickness, multi-layer thicknesses, density and moisture content of a sample in a single pass.

Attached to a separate transmitter and receiver, the T-Ray® 5000 Control Unit can perform spectroscopic measurements as well as transmission and reflection imaging.

  • Key Features
    • Compact enclosure

    • Mates to fiber coupled sensor head

    • Integrated data processor

    • Standard monitor and USB connections

    • Digital inputs available for measurement control

  • Applications
    Industrial process control
    • Commercial roofing
    • Foam density
    • Coating thickness
    • Plastic extrusion
    • Asphalt shingles
    Nondestructive materials inspection
    • Aircraft
    • Packaged goods
    • Random inspection
    • Spacecraft
    • Pipeline repairs
    Converting applications
    • Paper coating
    • Multilayer films
    • Tire
    Scientific applications
    • Terahertz Imaging (transmission and reflection)
    • Time Domain Spectroscopy



  • Specifications
    Maximum measurement range

     12, 25, 50 or 100 mm
    (will vary with material measured)

    Measurement rate 100 and 1000 Hz
    (determined by measurement range)
    External monitor connection  VGA
    A/D dynamic range 16 bit
    Operating temperature range 0-50 °C (20 - 90% RH non-condensing)
    Current required  <4 Amps (110/240 VAC, 50/60 Hz self-sensing)
    Size (W x H x D) 17.5 x 21.5 x7.5 inches (minimum size)
    Weight 18.2 kg
    USB ports 4
    Ethernet ports 3 (2 independent IP addresses)
    Digital interface 16 (inputs and outputs)
    Encoder inputs 6 (high speed)

    For full specifications, please download the data sheet.





  • Documentation

Solutions and Applications

Web manufacturing

The T-Ray® 5000 terahertz measurement system is robust enough to be deployed in an industrial environment and has all of the flexibility to solve your measurement application.

Contact Sales to Learn More

Contact Sales Form

Related Products

TCU Terahertz Controller Unit

Terahertz Gauging and Imaging

TCU Terahertz Controller Unit

Terahertz Gauging and Imaging

TeraMetrix is Luna’s platform for terahertz gauging and imaging, using pulsed terahertz waves to provide precise measurement of single and multi-layer thickness, density, basis weight and caliper thickness.
