HSC50yn Compact Industrial Sensor
T-Ray® 5000 Series

HSC50yn Compact Industrial Sensor

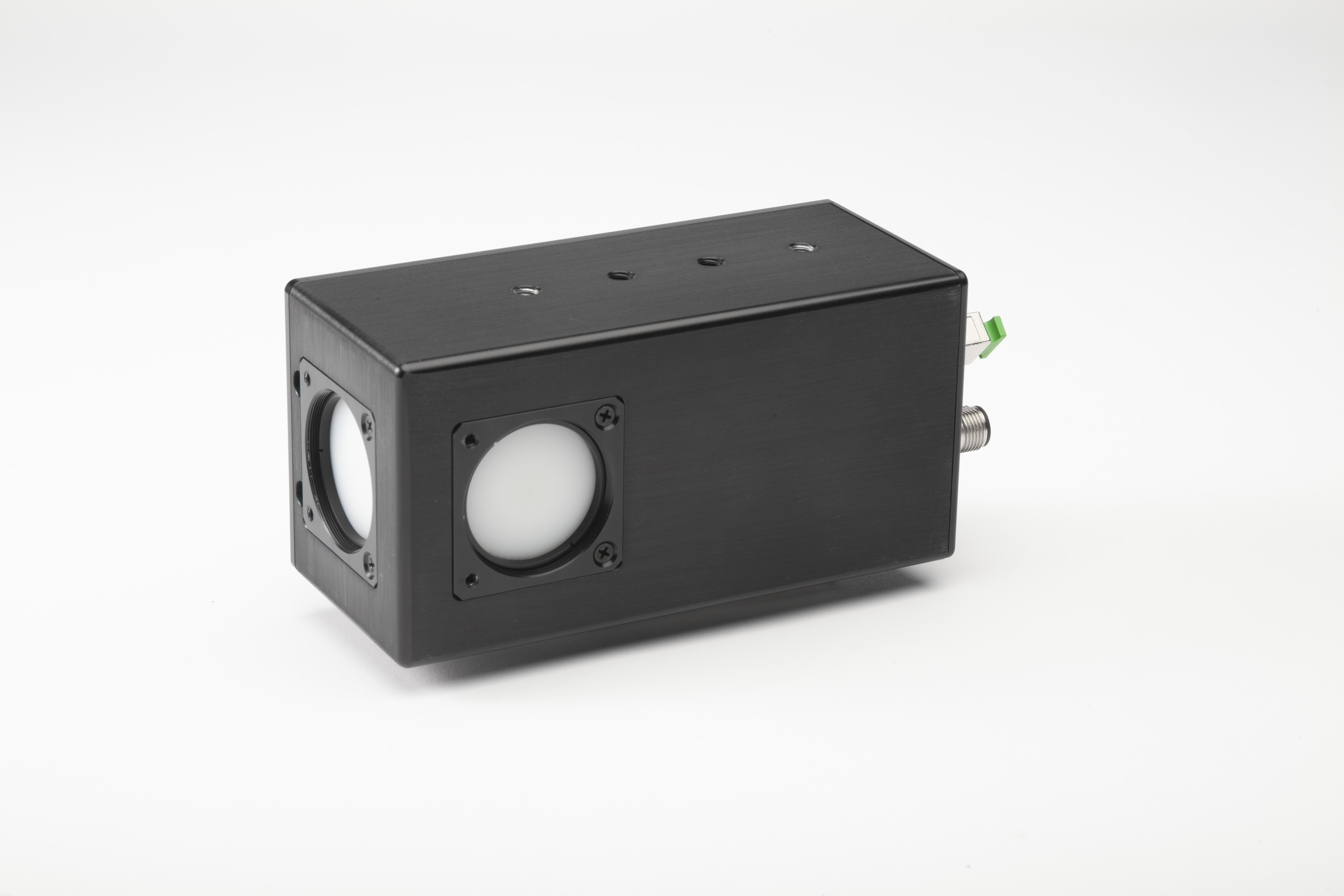

The HSC50yn is designed for industrial applications that require a smaller footprint, a lighter weight or two output beams.

HSC50yn Data Sheet
Contact Us

Product Description

Some applications for an Industrial Sensor require a smaller footprint, a lighter weight or two output beams. These capabilities are met by the HSC50yn, which capitalizes on the new single fiber lighter weight umbilical, and a more compact design, to allow robot mounting. With proper attention to the configuration it can be used to inspect two points on the same object. In the case of small diameter tubing, this can even be used to measure 4 orthogonal points at the same time.

  • Key Features
    • Collinear design
    • Two measurement ports (0° and 90°)
    • Potential to use both ports at once
    • Fiber coupled for ease of movement
    • Compact design allows access to confined locations
    • External connections for ease of use
    • Single fiber umbilical simplifies connection
    • Multiple lenses available
    • Robust mechanical design
  • Applications
    • Industrial process control: medical tubing; commercial roofing; plastic extrusion; Li-ion batteries
    • Nondestructive materials inspection: aircraft coatings; spacecraft; pipeline repairs; tire shoulder validation
    • Converting applications: multilayer films; tire ply calendering
  • Specs
    Polarization Extinction Ratio  >20:1 (Horizontal)
    Available Lens Focal Length  25, 75, 150 mm
    Beam Diameter  40 mm
    Mounting Hardware  1/4 - 20 Threaded mounting holes
    Operating Temperature Range  0 - 50 °C (20 - 90% RH non-condensing)
    Size (W x H x D)  76 x 67 x 152 mm
    Weight  1.1 kg
