Multifunction Polarization Controller
The MPC-202 and MPC-203 are multifunction polarization controllers with higher speed scrambling and polarization transition functions designed for stress testing of coherent receiver systems.
The MPC-202 and 203 are multifunction polarization controllers specially designed to meet the requirements of coherent receiver performance tests. They combine fiber squeezer polarization controllers with proprietary polarization control algorithms to achieve a wide range of polarization control functions.

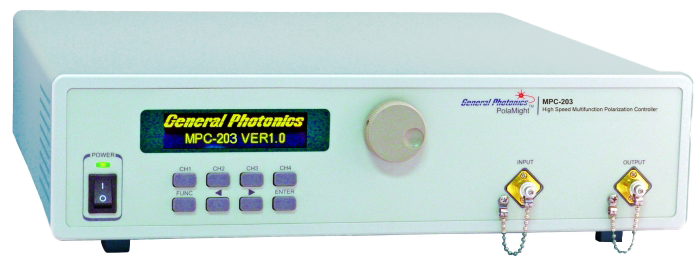

The MPC-203 has a polarization scrambling function with a maximum state of polarization (SOP) change rate of up to 11 Mrad/s for SOP tracking speed tests.
The MPC-202 has polarization scrambling and square wave transition functions with a slew rate of up to 360 krad/s for polarization tracking speed and recovery time tests.
Both units also have manual polarization control, modulation, and other scrambling functions similar to the MPC-201.
- Fast polarization variation (11 Mrad/s for MPC-202, 360 krad/s for MPC-202)
- Multiple polarization control and scrambling functions
- Easy to use
- Low IL, PDL, PMD, and activation loss (AL)
1260-1620nm or 980-1310nm
Max SOP change rate (Tornado scrambling)
MPC-202: 360 krad/s
MPC-203: 11 Mrad/s
Scrambling rate (other patterns)
Discrete random states: 0.00 to 20,000 points/s
Triangle: 0.00 to 2000 x 2π rad/s
Rayleigh rate distribution: 0.00 to 2000 rad/s (mean)
Manual polarization control
Number of squeezers: 4
Range: 0 – 4π each squeezer
Waveforms: sine, triangle, square
Frequency: 0.00 to 1000 Hz
Amplitude: 0 to 3π peak-to-peak
One random SOP per TTL trigger pulse, up to 20,000 points/s
Agilent 11896A scrambling emulation
Speed settings 1 – 8, matched to Agilent 11896A settings
< 0.6 dB with connectors (< 0.15 dB intrinsic)
0.1 dB with connectors
For full specifications, please download the data sheet.
