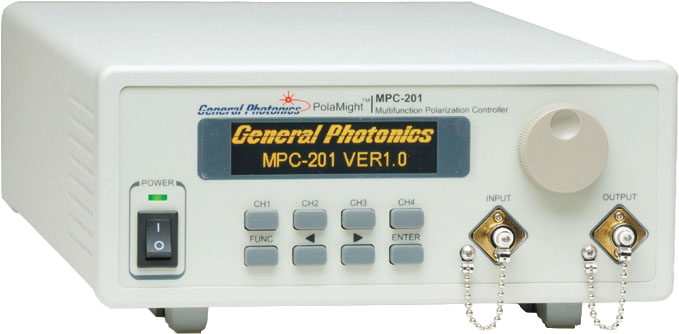

Multifunction Polarization Controller
The MPC-201 is an all-fiber polarization controller which can generate any output polarization state. It also has built-in functions for periodic modulation and polarization scrambling.
The MPC-201 uses a low loss fiber squeezer polarization controller combined with drive and
control electronics to achieve:
i) Manual Polarization Control: The user adjusts the output polarization by setting the control
voltage applied to each fiber squeezer.
ii) Variable Rate Polarization Scrambling: The instrument scrambles the output polarization to
cover the entire Poincaré sphere at a user-controllable rate, using one of several scrambling
algorithms: 1) Tornado, 2) Rayleigh, 3) Triangle, 4) Discrete, 5) Triggered, and 6) SOP Modulation.
- Multiple polarization control and scrambling functions
- Easy to use
- Low IL, PDL, PMD, and activation loss (AL)
1260-1620nm or 980-1310nm
Discrete random states: 0.00 to 20,000 points/s
Triangle: 0.00 to 2000 x 2π rad/s
Rayleigh rate distribution: 0.00 to 2000 rad/s (mean)
Tornado (quasi-uniform rate distribution): 0.00 to 2000
Manual polarization control
# of squeezers: 4
Range: 0 – 4π each squeezer
Waveforms: sine, triangle, square
Frequency: 0.00 to 1000 Hz
Amplitude: 0 to 3π peak-to-peak
One random SOP per TTL trigger pulse, up to 20,000
Agilent 11896A scrambling
Speed settings 1 – 8, matched to Agilent 11896A settings Insertion loss < 0.5 dB with connectors (< 0.1 dB intrinsic) PDL 0.05 dB with connectors
For full specifications, please download the data sheet.
