HTS40n1 Transmitter Type 1 Product
T-Ray® 5000 Series

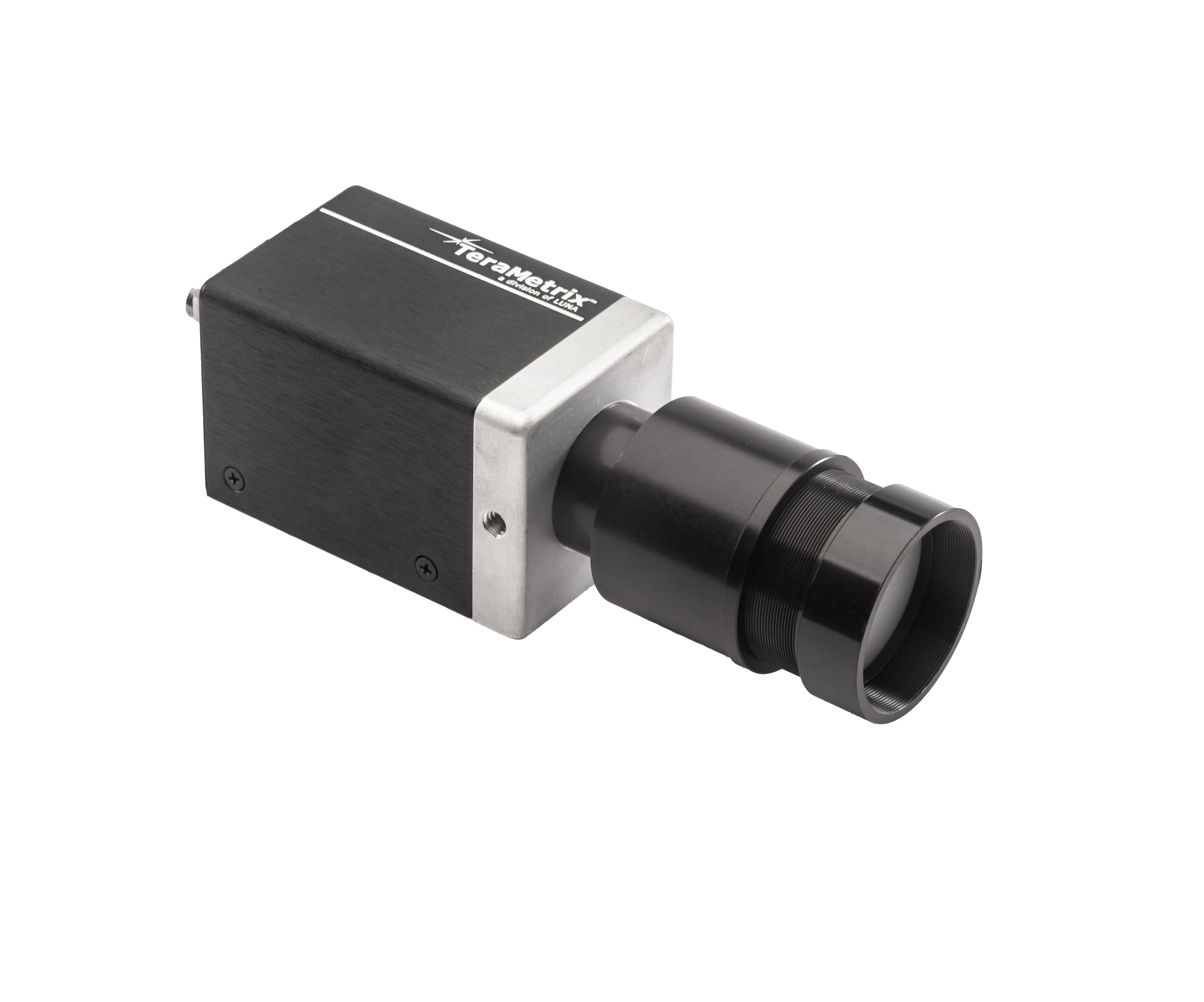

HTS40n1 Transmitter Type 1

The HTS40n1 is a transmitter for the T-Ray® 5000, the first compact pulsed terahertz measurement system that is robust enough to be deployed in an industrial environment and has all of the flexibility provided by our fiber-coupled sensor heads in a rack mount package.

Product Description

The HTS40n1 Transmitter Type 1 for the T-Ray® 5000 provides high output power with high spectral bandwidth. The enhanced low frequencies provide higher material penetration for imaging voids and disbonds in high-frequency scattering media. Coupled with an HRS40n1 receiver, the HTS40n1 transmitter provides bandwidth above 3.5 THz and signal to noise ratio above 70 dB. By maximizing low-frequency power, the HTS40n1 is ideal for applications where high material penetration is required for imaging, particularly in scattering or absorbing materials.

Operating in either reflection or transmission mode, the fiber-coupled sensor heads deliver a picosecond duration time-domain terahertz pulse, allowing high speed, scanned images to be easily produced.

  • Key Features
    • Fiber coupled to allow easy movement
    • Ultra-broadband measurement
    • Transmitted or reflected data collection
    • Mates with collinear adapter (AXA40n1)
    • High signal to noise ratio
    • Hot swappable with other transmitters
    • Low noise to enable rapid data collection
    • Adjustable lens tube for focusing
    • Multiple lenses available
  • Applications
    • Gas, liquid and solid spectroscopy
    • Nondestructive materials inspection
    • Package inspection
    • Semiconductor wafer inspection
    • Reaction kinetics monitoring
    • Medical and biological imaging research
    • Remote threat detection
    • Sub-surface corrosion detection
    • Homeland Security capabilities
  • Specifications
    Polarization Extinction Ratio <20:1 (Horizontal)
    Standard Lens 25, 75, 150 nm (collimating lens also available)
    Beam Diameter 38 mm
    Mounting Hardware 1/4-20 Threaded mounting holes
    Size (W x H x D) 7.5 x 7.5 x 15 inches
    Weight 275 gm



  • Documentation
