Embeddable Optical Strain Sensor

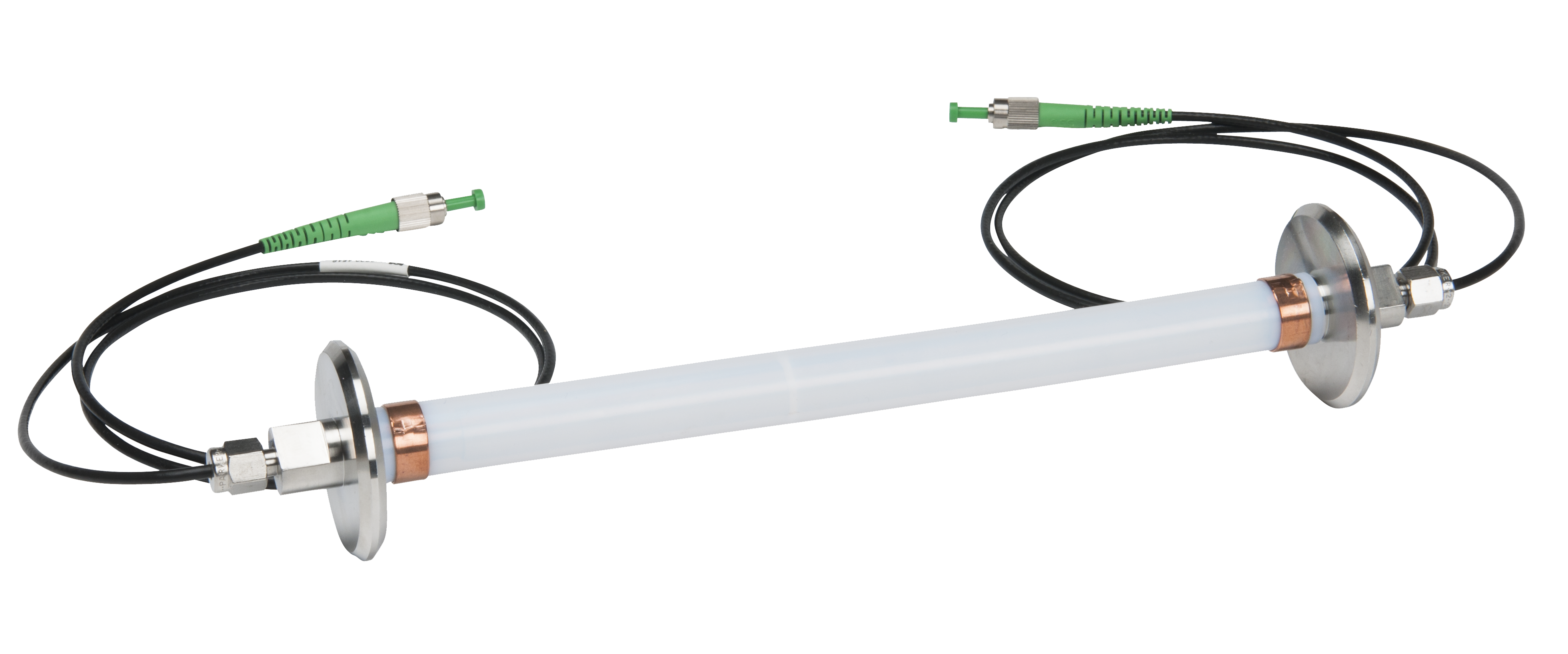

The os3600 Embeddable Strain Sensor measures average strain over the length of the gage while providing integrated temperature compensation.
The os3600, based on fiber Bragg grating (FBG) technology and is available two gage lengths of 25 or 100 cm. Intended exclusively for embedding in concrete structures, disk ends of the os3600 form a solid bond to surrounding concrete or grout. Universal ends allow the user to employ bolt-on, weld-on, or custom end brackets for attachment to rebar or other structures before embedding.
A rugged, Teflon and steel-shielded body, armored cables, and optional connector protection fittings make the os3600 suitable for harsh environments. Two FBGs are well protected inside the os3600 body. One FBG measures strain, and the other provides for integrated temperature compensation. Since there are no epoxies holding the fiber to the carrier, long-term stability is ensured by design.
In side-by-side comparisons with vibrating wire and foil strain gages, the os3600 is equally sensitive and accurate, while providing 100 times more fatigue life. The os3600 strain gage is qualified for use in harsh environments and delivers the many advantages inherent to all FBG based sensors.
This sensor can be used alone or in series as a part of an FBG sensor array. Installation and cabling for such arrays is much less expensive and less cumbersome than comparable electronic gage networks.
- Ruggedized sensor package, qualified to same rigorous standards applied to electronic gages
- Integrated temperature compensation FBG sensor
- Connector protection fittings available for harsh environments
- Double-ended design supports multiplexing of many sensors on one fiber
- Two standard gage lengths of 25 and 100 cm
- P67 rated for protection from dust and water ingress
Strain sensitivity ~ 1.2 pm/με Temperature sensitivity 23.8 pm/°C Gage length 25 or 100 cm Operating temperature range -40 to 80 °C Strain limits ± 2,500 με Water resistance Suitable for wet, high humidity environments (IP67) Fatigue life > 1x10^8 cycles @ +/- 2,000 ue
For full specifications, please download the data sheet.
Solutions and Applications
The os3600 Embeddable Strain Sensor, combined with the HYPERION interrogator, provides proven, high-performance solutions for a wide variety of monitoring applications.
