Embeddable Optical Strain Sensor
The os3500 Embeddable Strain Sensor measures average strain over the length of the gage while providing integrated temperature compensation.

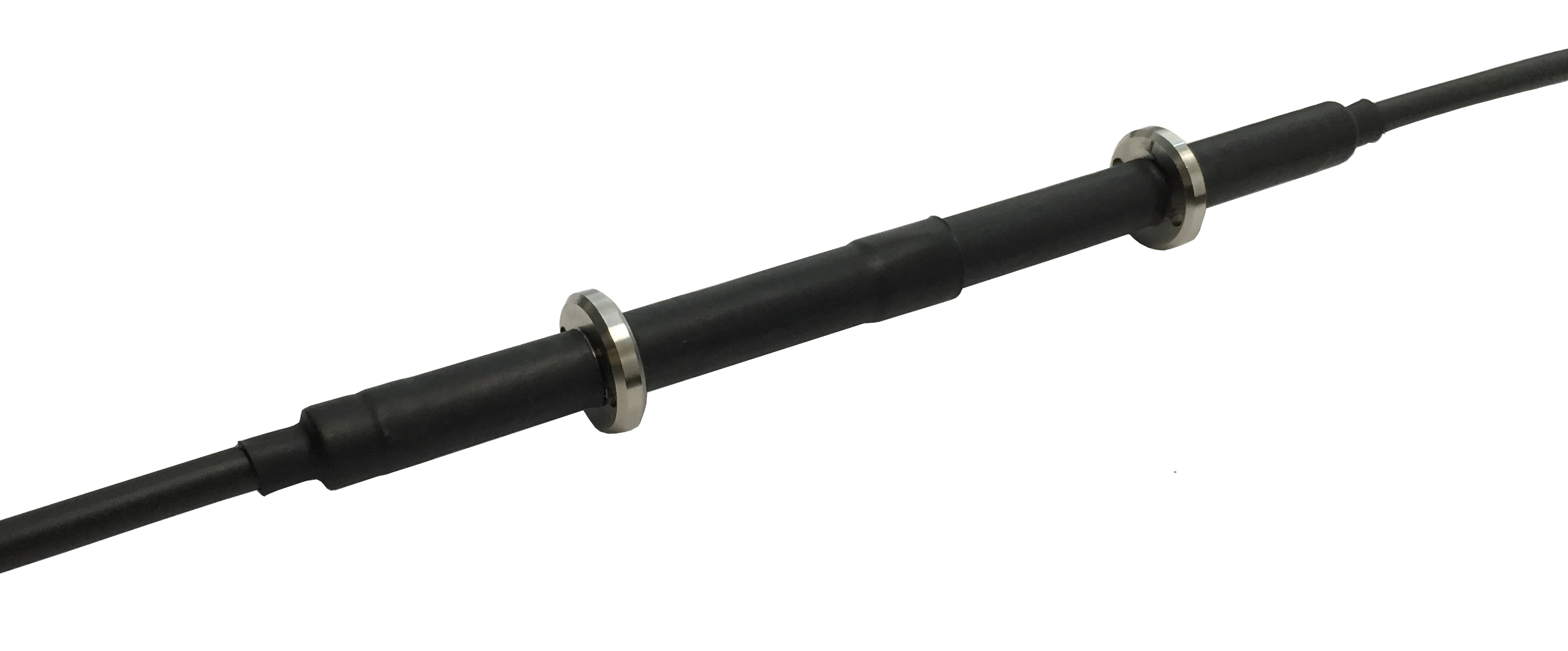

The os3500 Embeddable Strain Sensor measures average strain over the length of the gage while providing integrated temperature compensation. The os3500 is intended exclusively for embedding in concrete structures. Disk ends form a solid bond to surrounding concrete or grout.
A rugged, stainless steel body, ruggedized cables and optional connector protection fittings make the os3500 suitable for harsh environments. Two fiber Bragg gratings (FBGs) are well protected inside the os3500 body. One FBG measures strain while the other provides integrated temperature compensation. Since there are no epoxies holding the fiber to the carrier, long-term stability is ensured by design.
In side-by-side comparisons with vibrating-wire and foil strain gages, the os3500 is equally sensitive and accurate, while providing 100 times more fatigue life. The os3500 strain gage is qualified for use in harsh environments and delivers the many advantages inherent to all FBG based sensors.
- Ruggedized sensor package, qualified to same rigorous standards applied to electronic gages
- Integrated temperature compensation FBG sensor
- Connector protection fittings available for harsh environments
- Double-ended design supports multiplexing of many sensors on one fiber
- Patented micro opto-mechanical technology
Strain sensitivity ~ 1.2 pm/με Temperature sensitivity 23.8 pm/°C Gage length 110 mm Operating temperature range -40 to 80 °C Strain limits ± 2,500 με Water resistance Suitable for wet, high humidity environments (IP67) Fatigue life > 1x10^8 cycles @ +/- 2,000 ue
For full specifications, please download the data sheet.
