Mach-Zehnder Interferometer

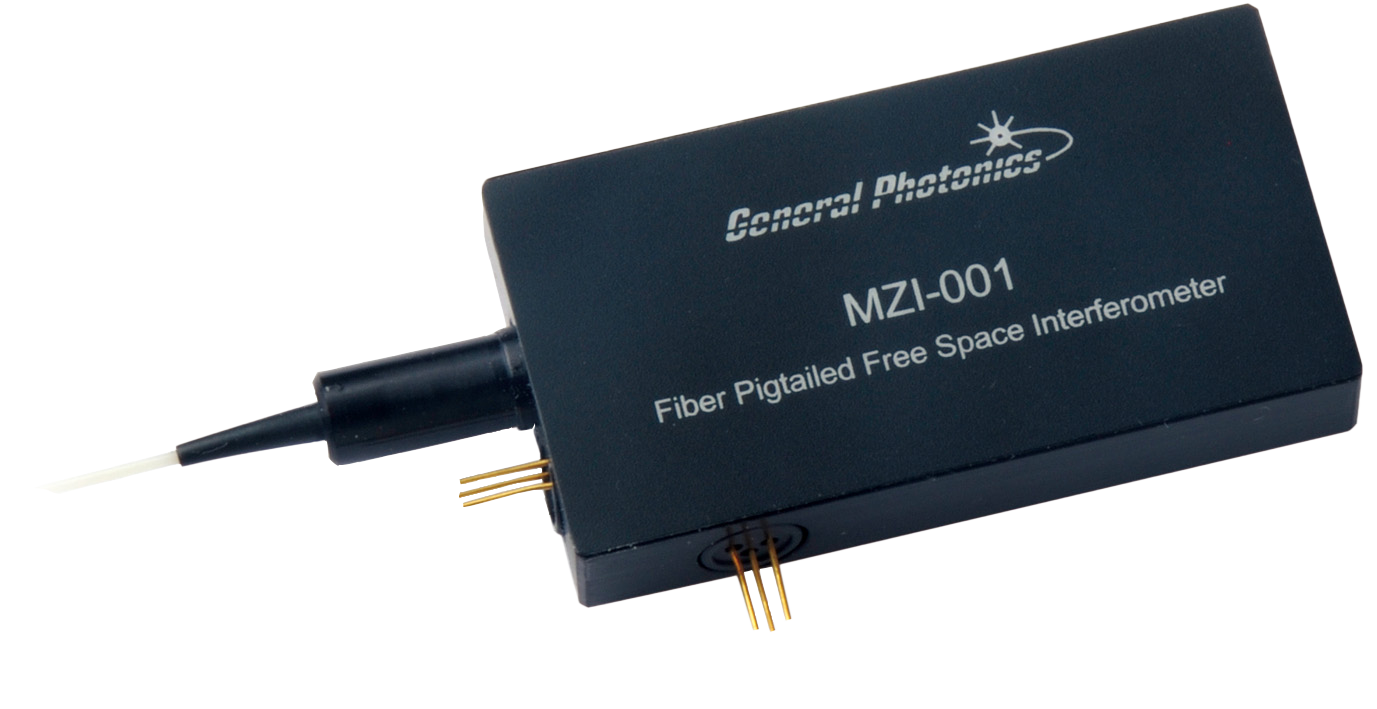

The MZI-001 is a fiber pigtailed Mach-Zehnder free space interferometer that detects changes in optical frequency.

Product Description

The MZI-001 free space Mach-Zehnder interferometer has two high speed photodetectors for the balanced detection of the two complementary outputs of the interferometer. The free space design eliminates much of the polarization sensitivity and free spectral range (FSR) uncertainty associated with fiber interferometers. The FSR, or zero-cross spacing, can be defined to within 2%. FSRs between 10 GHz and 100 GHz are available.

  • Key Features
    • Accurate free spectral range
    • Temperature stable
    • Polarization insensitive
    • Fine optical frequency spacing
    • Compact
  • Specifications
    Wavelength range 1060, 1310, or 1550±70nm
    FSR

    10, 20, 50 or 100 GHz standard

    Others available

    FSR tolerance 2%
    Overall responsivity per channel >0.5 A/W
    Detector rise/fall time 0.3 ns with 50Ω load
    Detector capacitance 0.7 pf
    Return loss (RL) 55 dB, excluding connector
    Polarization dependent response <0.5 dB

    For full specifications, please download the data sheet.

  • Documentation

Solutions and Applications

Applications include determining the instantaneous frequencies of wavelength-swept light sources, providing a frequency clock for system triggering in OCT systems, detecting sensing signal spectral drift in fiber sensors, and detecting laser frequency drift in coherent communication systems.
