Balanced Photodetector
Discontinued BPD-002

Balanced Photodetector

***THIS PRODUCT HAS BEEN DISCONTINUED***

Replacement Product: OEM Balanced Photodetector

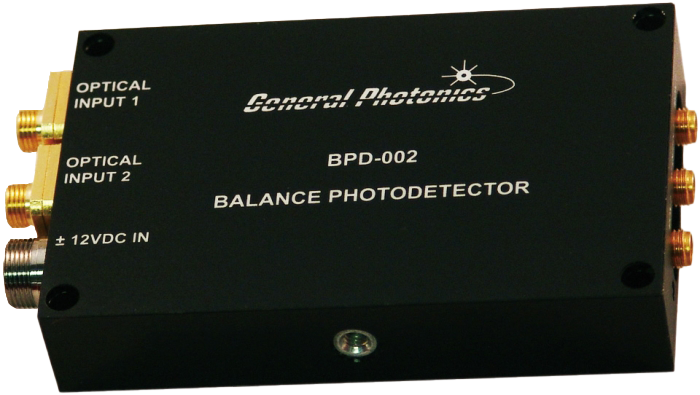

The BPD-002 is a compact laboratory balanced detector. It has a 200 MHz bandwidth balanced RF output and two 1 kHz monitor ports, and is packaged in a sturdy enclosure.

Product Description

The BPD-002 is designed for use in research and development, with ease of use and high performance as the primary design goals. The device is fully enclosed in a compact, sturdy aluminum box with two optical input ports, a balanced RF output port, two 1 kHz monitor ports, and a power supply port. With a bandwidth up to 200 MHz, a transimpedance gain larger than 30K and a saturation power larger than 130 µW, the BPD-002 can be integrated into laboratory or commercial OCT, fiber sensor, and high performance optical measurement systems.

  • Key Features
    • Low noise
    • High CMRR
    • High conversion gain
    • Compact
  • Specifications
    Wavelength range 1060, 1310, or 1550±50nm
    Transimpedance gain
    (total, including TIA and OP-AMP)
    3x104 V/A
    RF bandwidth (3 dB) DC-200 MHz standard
    Balanced saturation power >130µW at 1310nm
    NEP (DC-100 MHz) <10 pW/√Hz
    CMRR >25 dB
    Monitor gain 10 V/mW (high impedance)
    Monitor bandwidth (3dB) >1 kHz

    For full specifications, please download the data sheet.

  • Documentation

Solutions and Applications

The BPD-002 is a full-function balanced detector, with RF and monitor output ports, bulkhead connectors, and the ability to be mounted in different orientations. It is suitable for both laboratory and OEM applications.
