OEM balanced detector
BPD-002-OEM

OEM Balanced Detector

The BPD-002-OEM is a small, AC-coupled balanced detector for OEM applications.

Contact Us

Product Description

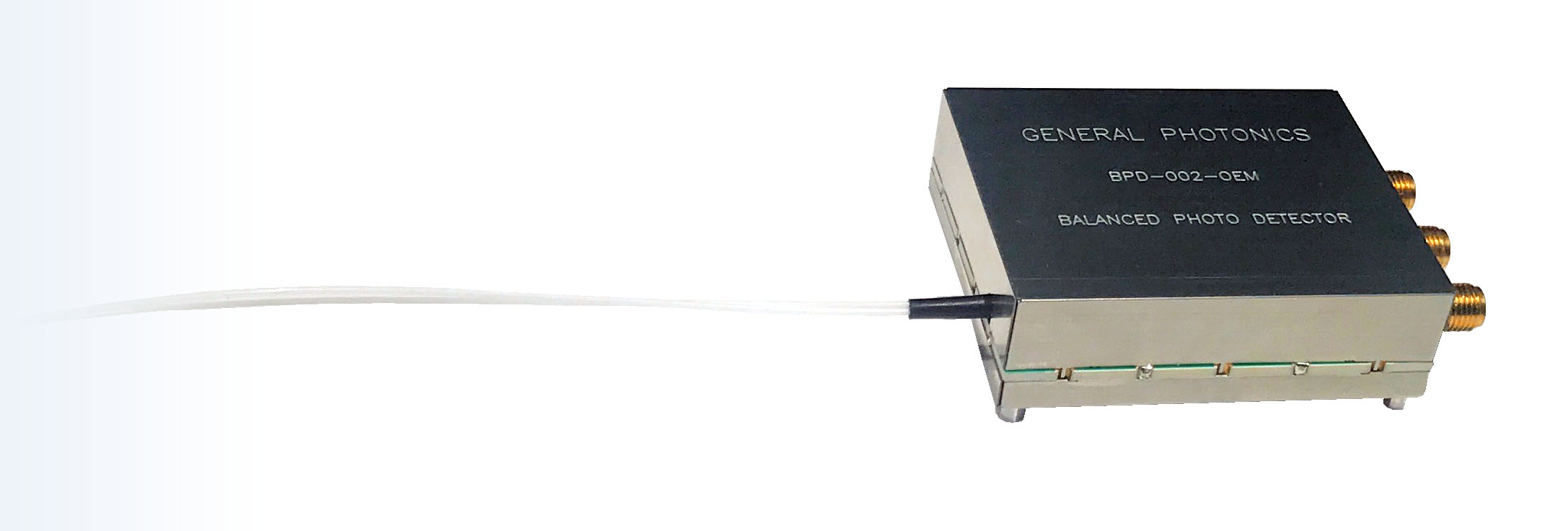

The BPD-002-OEM has 2 optical inputs, a balanced RF output port, and two 1 kHz monitor ports. It is packaged in a small shielding box. It is AC coupled and has a bandwidth of 400 MHz.

  • Key Features
    • Low noise
    • High CMRR
    • AC Coupled
    • Compact
  • Specifications
    Wavelength range 1550±50nm
    Transimpedance gain
    (TIA + post-amplifier)    		 18 × 103 mV/mA at 50Ω
    Conversion gain >14 × 103 mV / mW at 1550nm, at 50Ω
    RF bandwidth (3 dB) ≥400 MHz
    Coupling AC
    Lower cutoff frequency <1 MHz
    CW balanced saturation power >120 μW at 1550nm
    NEP (10-100 MHz) <6 pW/√Hz
    CMRR > 25 dB
    RF output voltage
    (linear range)    		 ±1 V at 50Ω load
    ±2 V at high impedance load
    Dimensions 2.21” (L) × 1.81” (W) × 0.65” (H)

    For full specifications, please download the data sheet.

  • Documentation

Solutions and Applications

The BPD-002-OEM is a small balanced detector specifically intended for integration into larger systems such as OCT, sensor, or measurement systems.
