HD Temperature Product Sensors
HD6T

High-Definition Fiber Optic Temperature Sensors

Unlike conventional discrete temperature sensors, Luna’s high definition fiber optic temperature sensors provide continuous, high-resolution (less than 1 mm) measurements of temperature along the sensor fiber.

Product Description

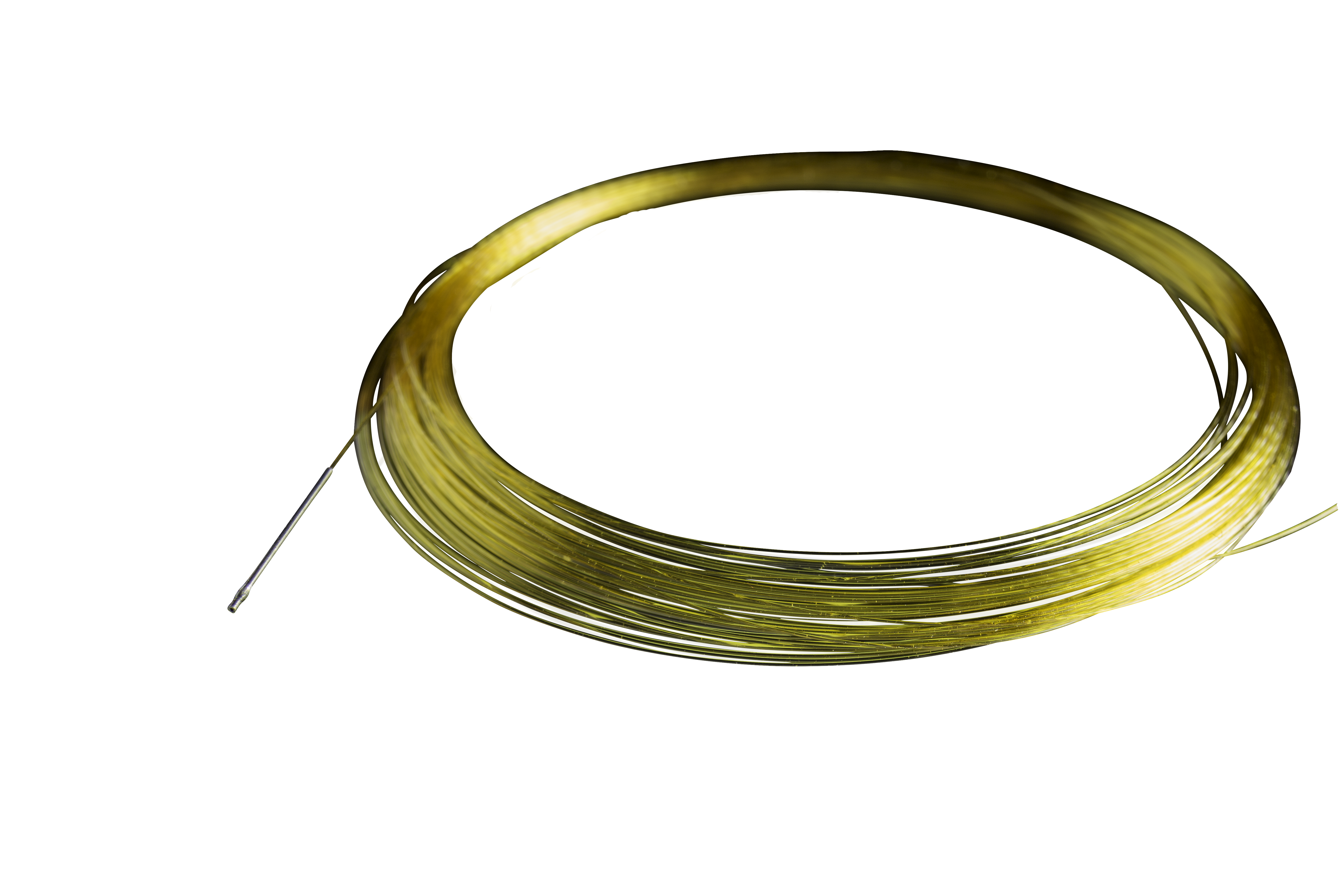

HD temperature sensors are low-profile versatile fiber optic sensors which, when used with an ODiSI system, can provide more than a thousand distinct temperature measurements per meter. HD temperature sensors consist of polyimide coated fiber housed loosely in a PTFE tube (jacket) to reduce the amount of strain applied to the sensor.


  • Key Features
    • Low-profile and flexible for complex geometries
    • High-density temperature measurements
    • Dielectric and EMI/EMC immune
    • Plug-and-play operation with ODiSI system

  • Specifications
    Standard sensor lengths Available from 1 m to 5 m
    Sensor diameter 0.8 mm
    Operating temperature range -40 to 220 °C
    Fiber type Polyimide coated sensing fiber housed in PTFE tubing
    Connector     LC/APC

    For full specifications, please download the data sheet.

  • Documentation

Solutions and Applications

Battery cell temperature

HD temperature sensors, combined with the ODISI system, are the ideal solution for applications needing higher density thermal data and the robustness of fiber optic sensors.
