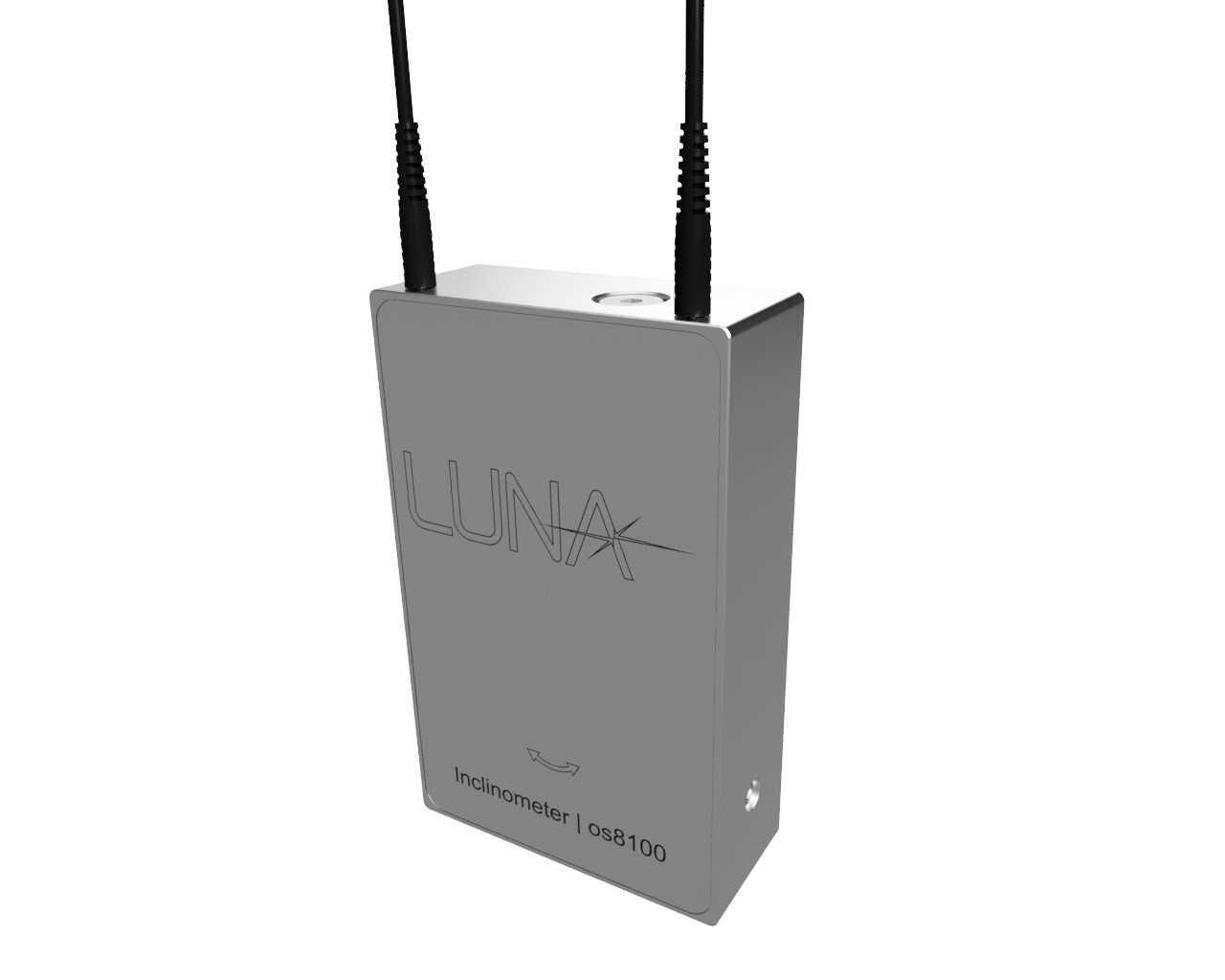

Luna’s os8100 are Fiber Bragg grating (FBG) based high sensitivity, tilt sensors. Featuring a rugged and very stable monitoring capability that can be dispersed over long distances.

Product Description

The os8100 features a novel approach to tilt sensing by utilizing FBG technology to measure minute changes in deflection angles, all while being able to pair with various physical parameters e.g. strain, temperature, displacement, acceleration, pressure.

Installation is simple and repeatable with several mounting options to include wall, ceiling, and floor mounts. With a tilt range of ranges of 10° and a resolution of down to 0.002°, the os8100 series presents a unique capability for sensor deployments. Up to 256 os8100 sensors can be integrated on Luna’s HYPERION platform.

The os8100 series of sensors is compatible with ENLIGHT Sensing Analysis Software, which provides an integrated suite of tools for data acquisition, computation and analysis of optical sensor networks as well as the HYPERION platforms comprehensive Application Programming Interface (API) and examples written in LabVIEW, Python, Matlab, C++ and C#.

  • Key Features
    • Ease of installation, simple and repeatable
    • Rugged, multipoint monitoring; up to 256 sensors on a single HYPERION instrument
    • Ultra high resolution
    • Multiparameter various physical parameters measurements coupled onto the same instrumentation platform
    • Internally temperature compensated
  • Specifications
    Specifications os8100
      Measurement Type Temperature compensated, deflection angle (tilt)
      Measurement Range 10°
      Resolution 0.002°
      Response Time < 3 seconds
      Accuracy 10 mdeg / 175 μm/m
      Protection IP 67
      Construction Material 1.4404 (SS 316L)
      Measurement Points Up to 256 with 16 channel si255, 16 sensors per channel
      Wavelength Options 1463/1467, 1473/1477…1613/1617 nm in10 nm interval
    Physical Properties
      Dimensions 120 mm x75 mm x 32 mm
      Operating -30 to 80° C
      Weight 1.5 kg
      Mounting Options Wall, ceiling, and floor mounting options available
