os7200 Optical Accelerometer
os7200

Optical Accelerometer

Luna’s os7200 are fiber Bragg grating (FBG) based accelerometers, featuring a wide range of sensitivities and frequency responses, which can be dispersed over 10’s of kilometers and integrated with ease into monitoring solutions.

Product Description

The os7200 features a fresh new approach to vibration monitoring by utilizing FBG technology to measure a wide range of vibration events, all while being able to pair with various physical parameters e.g. strain, temperature, displacement, pressure, tilt.


Installation is simple and repeatable with standard threaded connections and is available in one, two or three axis configurations. A rugged, sealed metallic body, and Kevlar ™ armored cables enable deployments in austere environments. Up to 128 os7200 sensors can be integrated on Luna’s HYPERION platform for reduced total system costs.


The os7200 series of sensors is compatible with ENLIGHT Sensing Analysis Software, which provides an integrated suite of tools for data acquisition, computation and analysis of optical sensor networks as well as the HYPERION platforms comprehensive Application Programming Interface (API) and examples written in LabVIEW, Python, Matlab, C++ and C#.

  • Key Features
    • High sensitivity
    • Rugged sensor package
    • Multipoint up to 128 sensors on a single HYPERION instrument
    • Various physical parameters measurements coupled onto the same fiber optic cable
    • Long distance, with 10’s of kilometers of coverage
    • Available mounting block for two and three axes
    • Compatible with Luna’s ENLIGHT software
  • Specifications

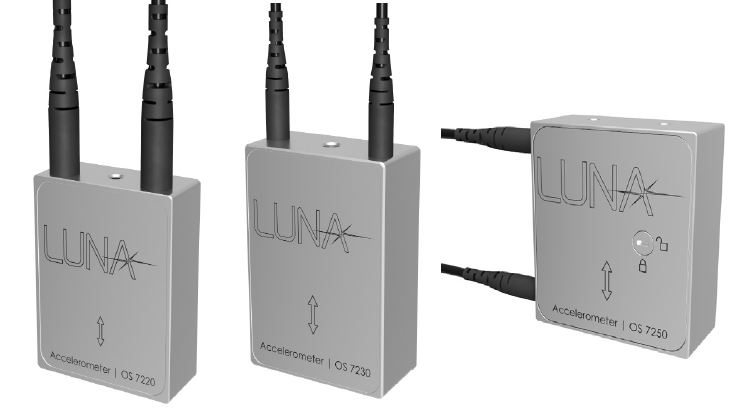

      os7220 os7230 os7250
    Frequency range 5 to 2000 Hz 5 to 1000 Hz 0 to 160 Hz
    Sensitivity 10 pm/g 90 pm/g 1200 pm/g
    Measurement range ±200 g- ±30 g- ± 20 m/s2 (maximum)
    Resonance frequency > 2,500 Hz > 1,300 Hz > 240 Hz
    Transverse sensitivity < -30 dB < -30 dB < -40 dB
    Maximum shock 500 g 70 g 100 m/s2 unlocked /
    1000 m/s2 locked
    Operating temperature range -40 to 60 °C -40 to 60 °C -65 to 80 °C
    Measurement points Up to 128 with 16 channel si255, 8 sensors per channel Up to 128 with 16 channel si255, 8 sensors per channel Up to 128 with 16 channel si255, 8 sensors per channel
    Mounting method M5 standard mounting thread M6 standard mounting thread M5 standard mounting thread

    For full specifications, please download the data sheet.
