Manual Polarization Controllers

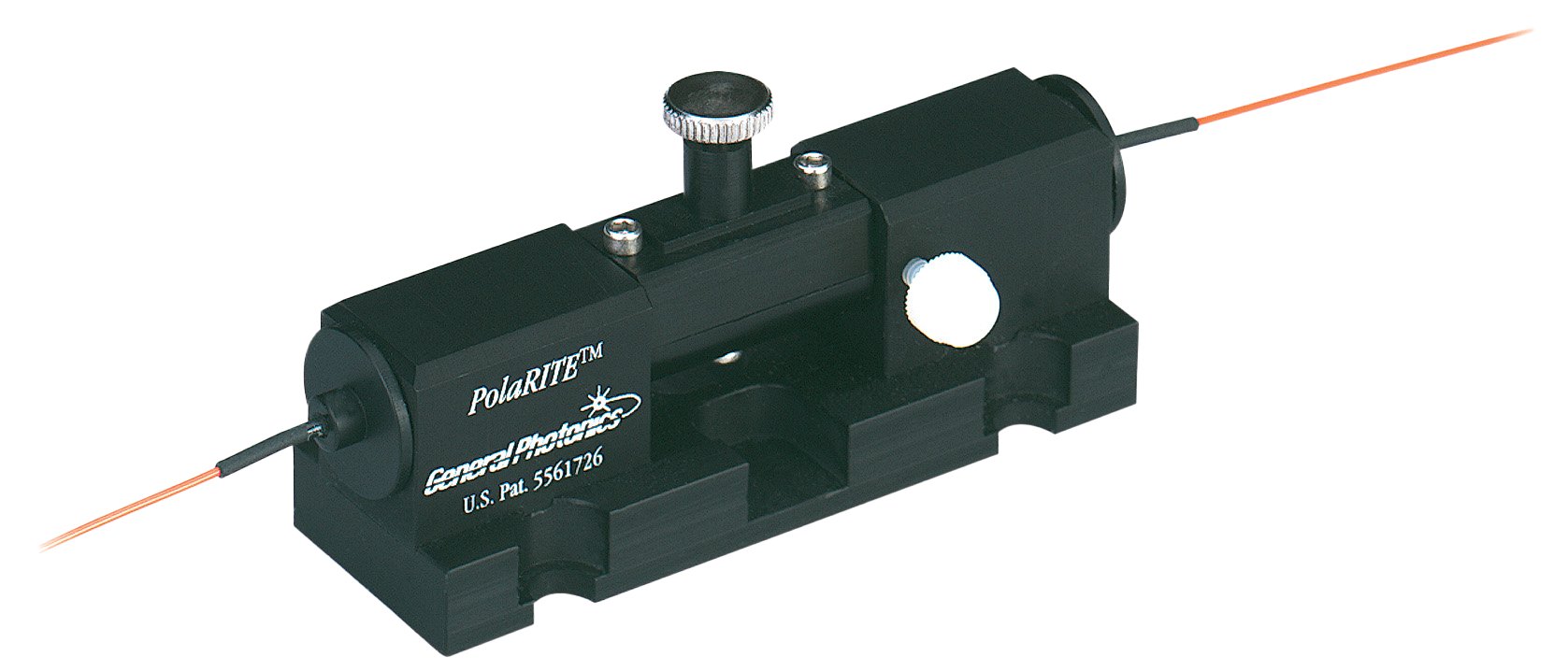

The PLC series are manual polarization controllers based on fiber squeezing technology and are available in several configurations.
In the PLC series of polarization controllers, pressure is applied to a single-mode fiber to change its birefringence, and thus, the polarization of the output light. The user controls the amount of pressure via a thumb screw, and the pressure axis via a rotatable center section of the controller. They are available with built-in fiber or as drop-in devices that can control the polarization in fiber already in the system, Different connector configurations and sizes are also available.
- Low insertion loss
- Easy to use
- Different configurations available
(for versions with included fiber)
1260-1650nm or 980-1310nm standard
Insertion loss (IL) 0.05 dB intrinsic
<0.5 dB with connectors
Extinction Ratio >40 dB
For full specifications, please download the data sheet.
