LWA 7000 Lightwave Analyzer
LWA 7000 Series

Lightwave Component Analyzer

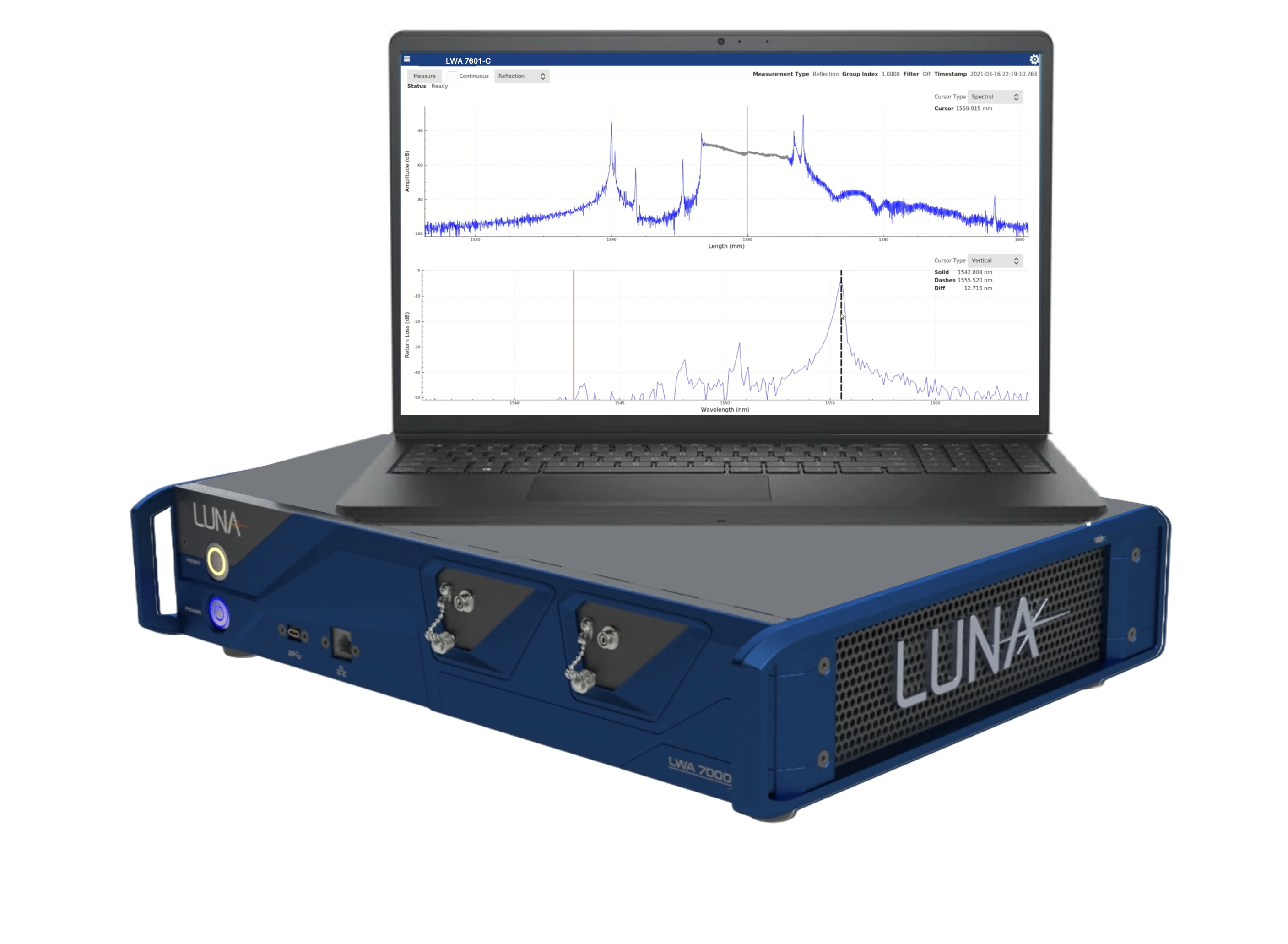

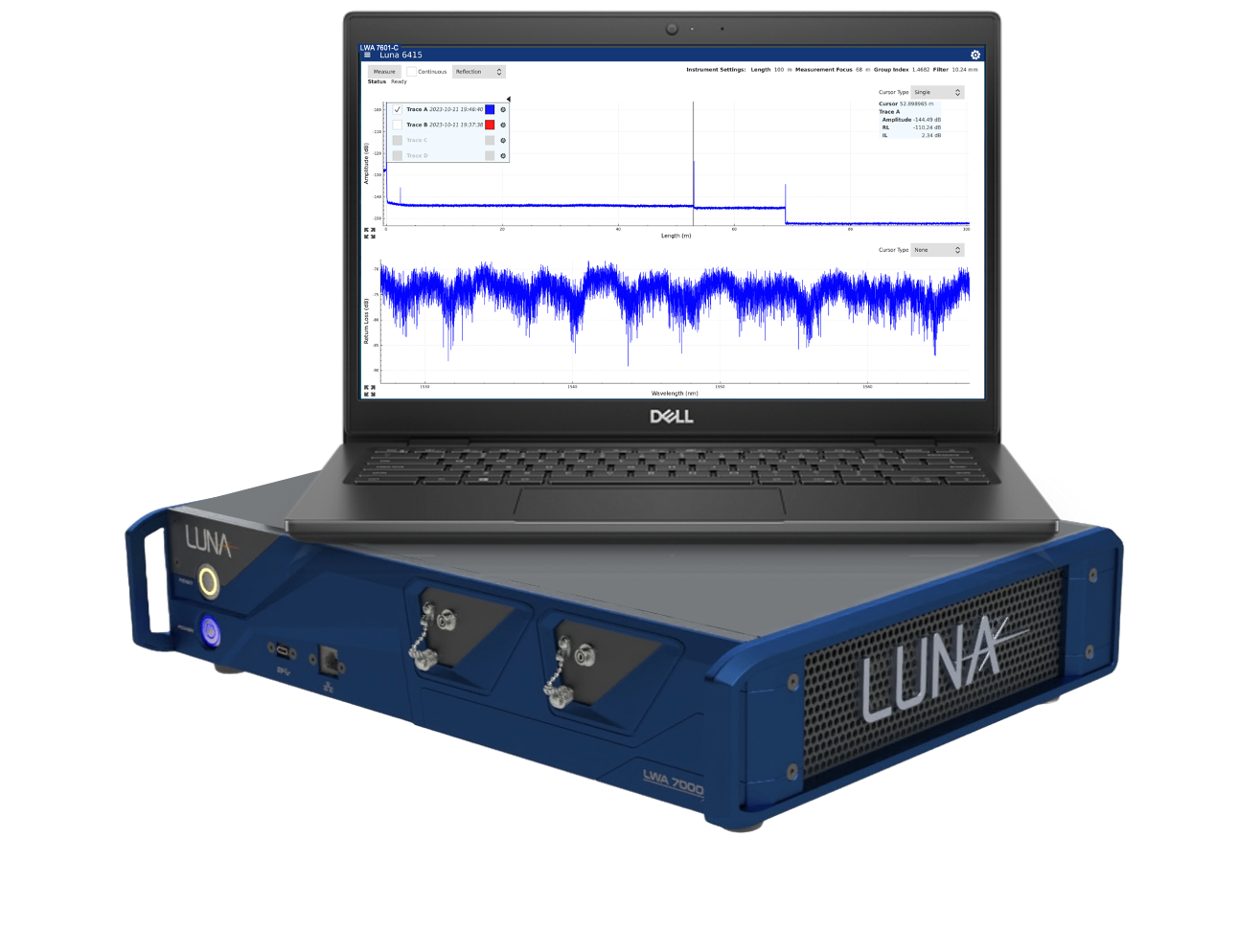

The LWA 7601-C Lightwave Component Analyzer is a fast and simple-to-use tool for testing modern optical components and modules, including Photonics Integrated Circuits (PICs). The LWA 7601-C measures and analyzes the Insertion Loss (IL) and Return Loss (RL) distribution, frequency response, as well as length.  Optical components are scanned in either reflection or transmission mode.

LWA 7000 Series Data Sheet
Contact Us

Product Description

The LWA 7601-C instrument utilizes optical frequency domain reflectometry (OFDR) technology to measure backscattered or transmitted light as a function of distance/time (or wavelength). The extremely high sensitivity and sampling resolution (20 μm) make an ideal analyzer for photonic integrated circuits (PICs) and silicon photonics. When combined with the extended measurement range, up to 500 m measurement range is achieved, making the testing of fiber networks an easy task. The LWA 7601-C reduces the cost and complexity of test while increasing throughput by measuring RL, IL and length in reflection or transmission with a single instrument.

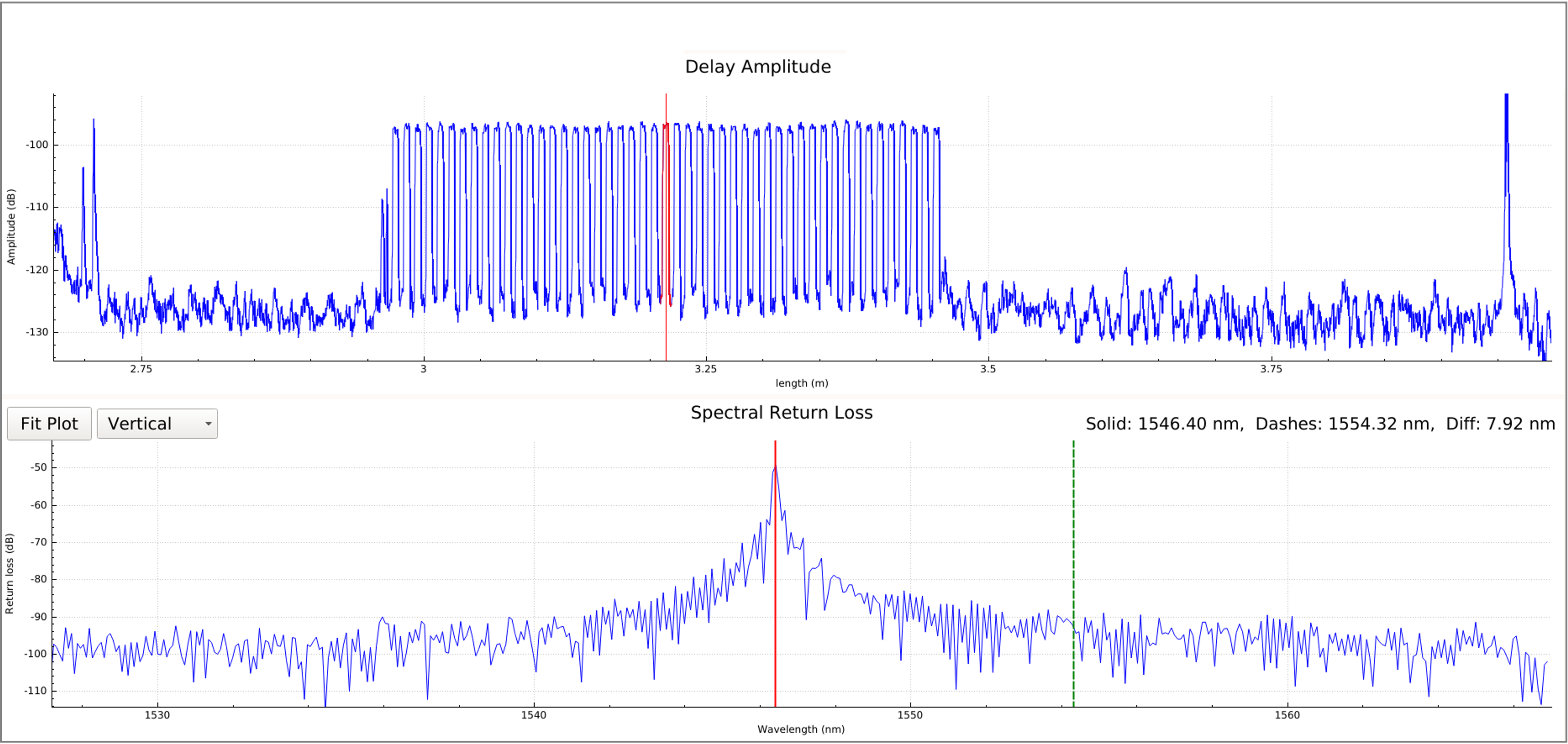

LWA 7601 C Graph
Measuring in reflection mode, the LWA 7601-C measures return loss versus length. The bottom plot shows the spectral content of the identified reflection event (filter).



  • Key Features
    • Return loss (RL) and insertion loss (IL) analysis
    • Analyze components in reflection and transmission
    • Trace distributed RL over length of optical path
    • Spectral analysis of RL and IL
    • Detect and precisely locate reflective events and measure path length (up to 500 m)
    • Speed, resolution and accuracy for optimizing production test
    • 20μm sampling resolution
    • 12 Hz scan/acquisition rate (80 ms)
  • Applications
    • Spatial RL testing
    • Automated IL test and analysis
    • Skew measurement with subpico second resolution
    • PLCs, waveguide devices, AWGs, ROADMs, etc.
    • Filters, couplers, switches, beam splitters, FBGs, specialty fibers
  • Specifications
    PARAMETERSPECIFICATIONUNITS
    Measurement
     LWA 7601-CLWA 7601-C
    (with extended rage option)
    Maximum measurement lengthReflection100500m
    Transmission2001000m
    Sampling resolution (two point)2080μm
    Time-of-flight delay accuracy±0.01%
    Wavelength scanning range1546.69 ± 201546.69 ± 5nm
    Measurement time (in continuous mode)0.08 (20 m)
    0.4 (100 m)    		0.5s
    RL dynamic range70dB
    Sensitivity-135dB

    For full specifications, please download the data sheet.
