Luna LPD-100 Log Detector
LPD 100

Log Detector

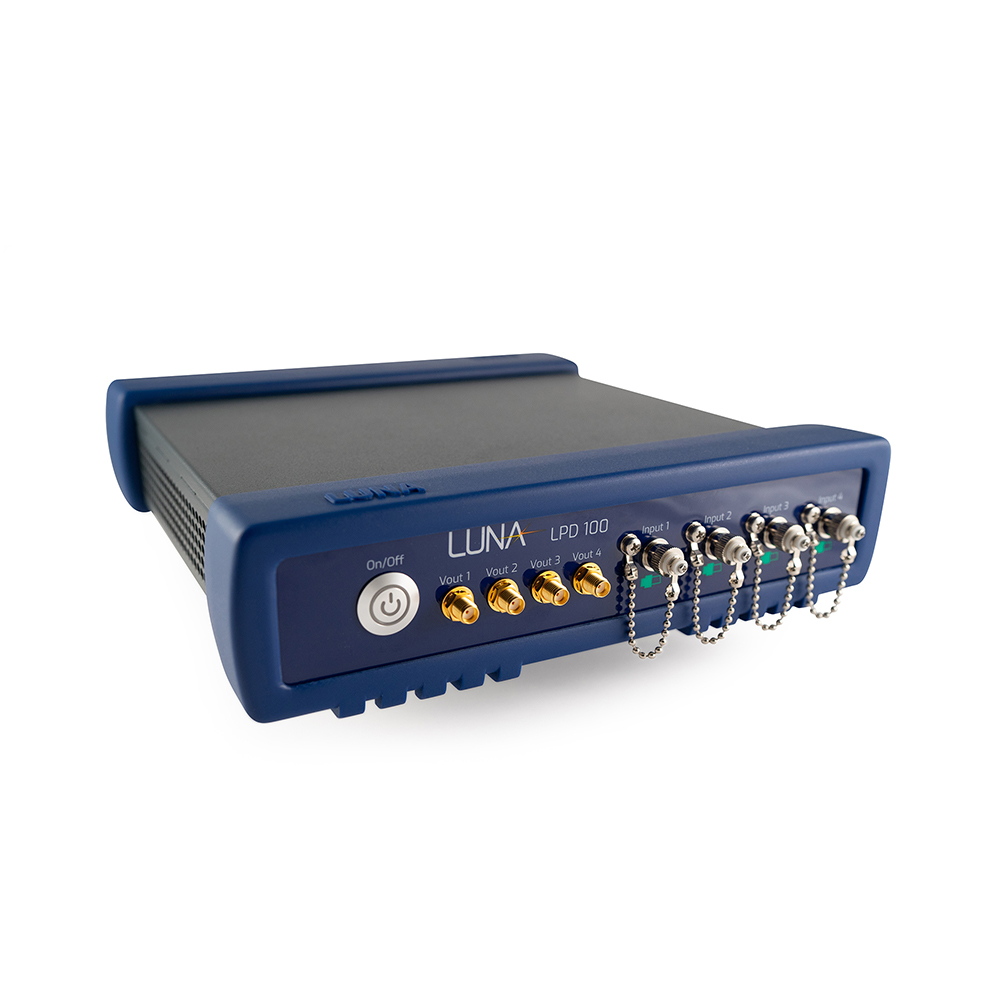

The multiport LPD 100 Log Detector is a useful photodiode amplifier designed to measure low light levels, below - 90 dBm.

Luna LPD-100 Log Detector Data Sheet
Contact Us

Product Description

Luna’s Log Detector is a useful photodiode amplifier designed to measure low light levels, down to - 90 dBm and produce linear logarithmic electrical signal. It come with two of four channel options. The LPD 100 is particularly suited to perform high dynamic range power measurements in closed loop related applications. For example, in polarization tracking, specifically when trying to track to a minimum light level, where generating a reliable tracker feedback signal could be a challenging problem.

  • Key Features
    • Calibrated from < -85 dBm to >10 dBm.
    • Response greater up to 4 MHz
    • Single buffered analog (SMA) voltage output
    • Compact size
    • Modular Design
  • Specifications



    Specifications apply at ambient temperature T = 25°C and at center wavelength unless otherwise noted.

    Operating wavelength range1000nm - 1680nm
    Fiber typeSM
    Optical connector typeFC/APC
    Output offset   -0.6 ± 0.2 V
    Output voltage(V) max@10dbm 2.5 ± 0.1 V
    SMA Port output impedance (Ω)  50Ω
    Tested Optical Dynamic Range is 95 dB -85 dBm - +10 dBm
    Frequency response range (Optical Power -85 ~ 10dBm) 0.1MHz - 4MHz
    Power Supply AC 100~240V / 15VA
    Operating temperature 0°C  - 50°C
    Storage temperature -20°C  - 70°C
    Dimensions  230mm (L) x 240 mm(W) x 60mm (H)

    For full specifications, please download the data sheet.
