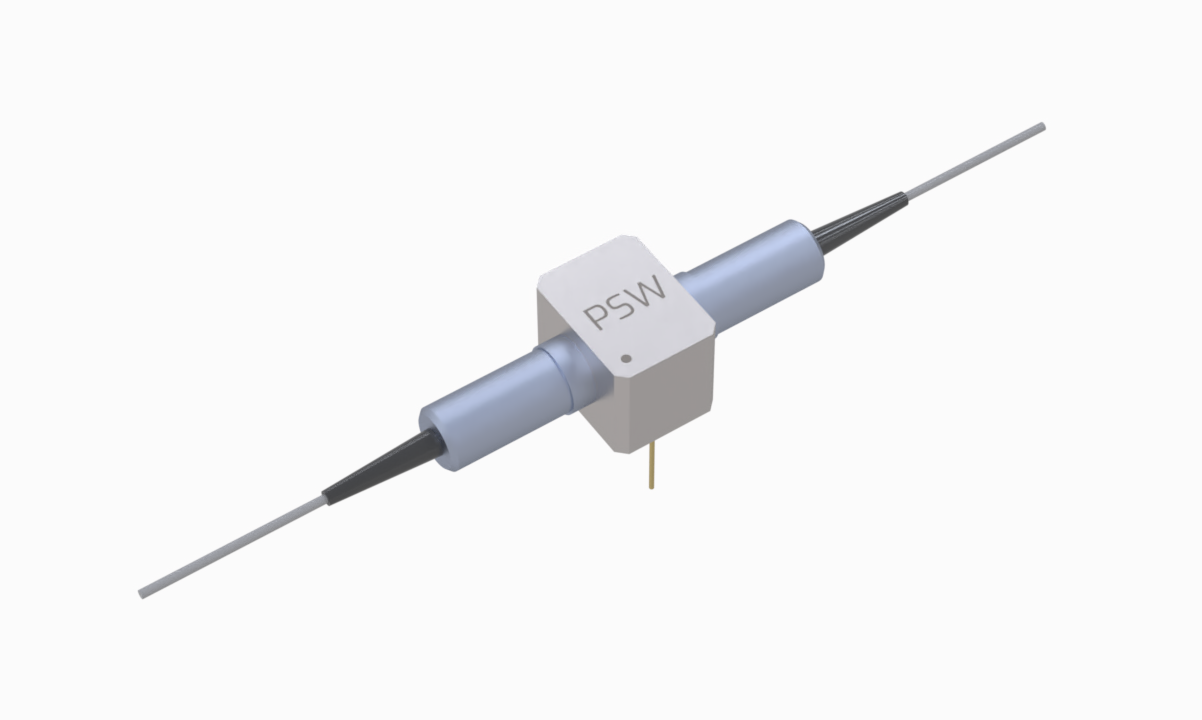

High-Speed Polarization Switch
Luna Innovations’ all solid-state, high speed self-latching polarization switch can quickly and repeatedly rotate the SOP of incoming light by a fixed angle, either 45 or 90 degrees, or convert an input linear polarization state to an output circular polarization state with 45 μs switching time, typically.
- Digitally switched SOP
- Fast switching time 45 μs (typical)
- SOP repeatability 0.1°
- Zero static power dissipation
- Minimal heat generation
Wavelength range 1550±30 nm or 1310 ±30nm Polarization rotation (at λc , 23°C) 45±0.5° or 90±0.5° Polarization rotation angle 45 or 90 ±1° Polarization repeatability ±0.1° SOP switching time 45 µs typical (@10 V bias) Insertion loss 0.5 dB (max)
For full specifications, please download the product flyer or contact Luna for the full PSW-003 specification sheet.
- PSW-003 Product Flyer
- PSW-003 Product Specification Sheet (contact Luna)
Solutions and Applications
The PSW-003 is a small module suitable for OEM integration wherever polarization switching is required. Applications include polarization diversified detectors and sensors, polarization sensitive OCT, polarization metrology, polarization sensitive OTDR and OFDR, and PMD monitoring.
Contact Sales to Learn More
Polarization Management and Emulation
Control and manage polarization in your optical system with our lossless fiber-squeezer based multifunctional polarization controllers for highest performance. Emulate all polarization impairment parameters including SOP, PMD, and PDL, with our complete line of emulation products for network and system characterization.
