PSG-001 Product

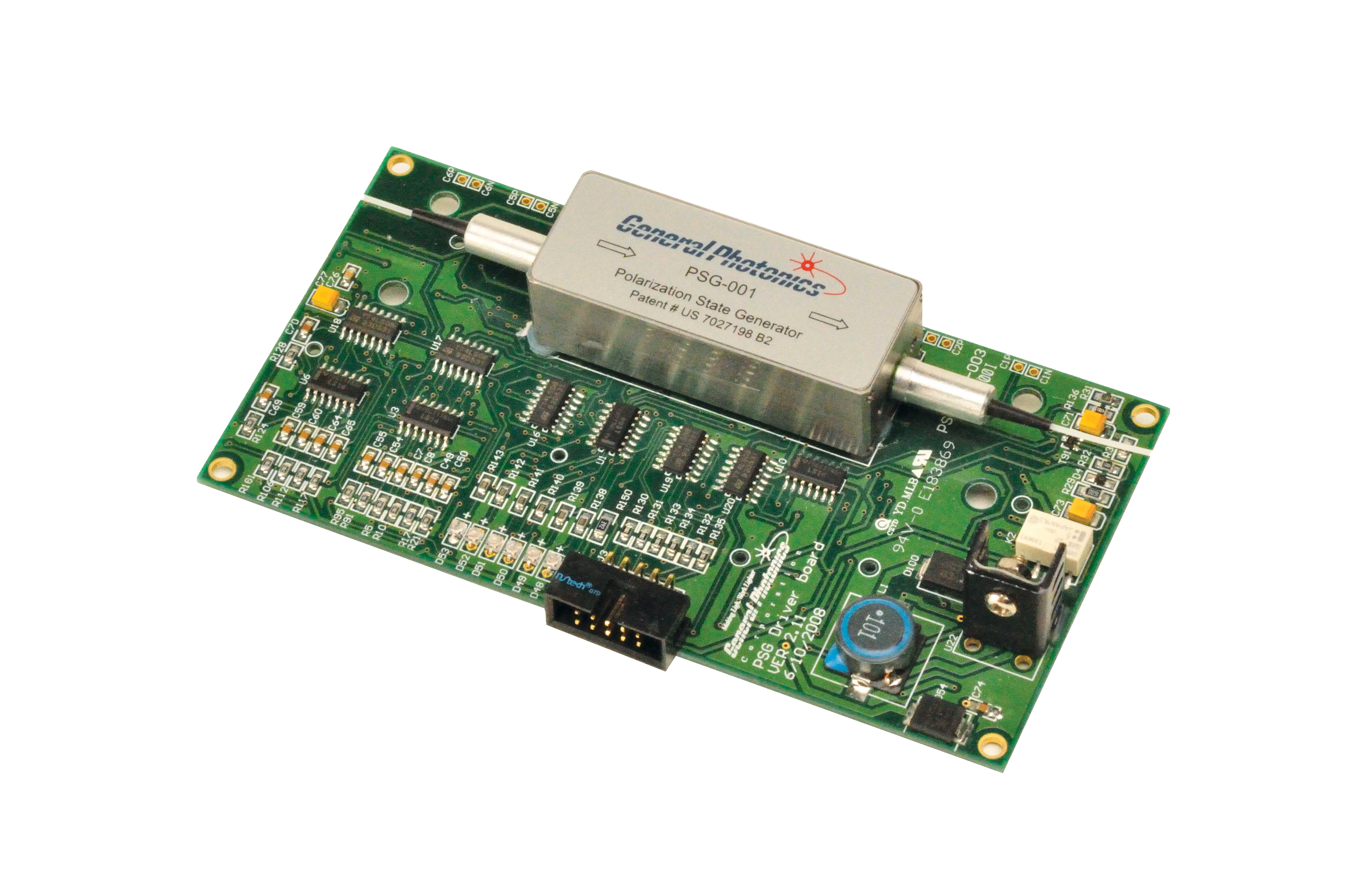

PSG-001

Polarization State Generator

The PSG-001 polarization state generator module generates 6 states of polarization (SOP): (−45°, 0°, 45°, 90°, RHC & LHC).

Product Description

The PSG-001 uses a design based on magneto-optic rotators to quickly and repeatably generate the 6 Poincaré sphere pole point polarization states. It is a compact module suitable for integration into test instruments or systems that use Mueller or Jones matrix measurements. The output state of polarization is controlled via a 6-bit TTL signal.

Solutions and Applications

The PSG-001 is a small module suitable for OEM integration wherever a measurement requires some subset of the 6 Poincaré sphere pole points. Applications include Mueller matrix-based measurements, polarization OTDR, performance monitoring, and swept frequency component measurement systems.
